(Figure 4-2-5)
1)disk brake plate
2)Rront brake plate clip
4.2.1.3 Disassembly of the Front Disk Brake system:
1.Remove the bottom seat
of Disk Brake Pump and
then remove the whole unity.

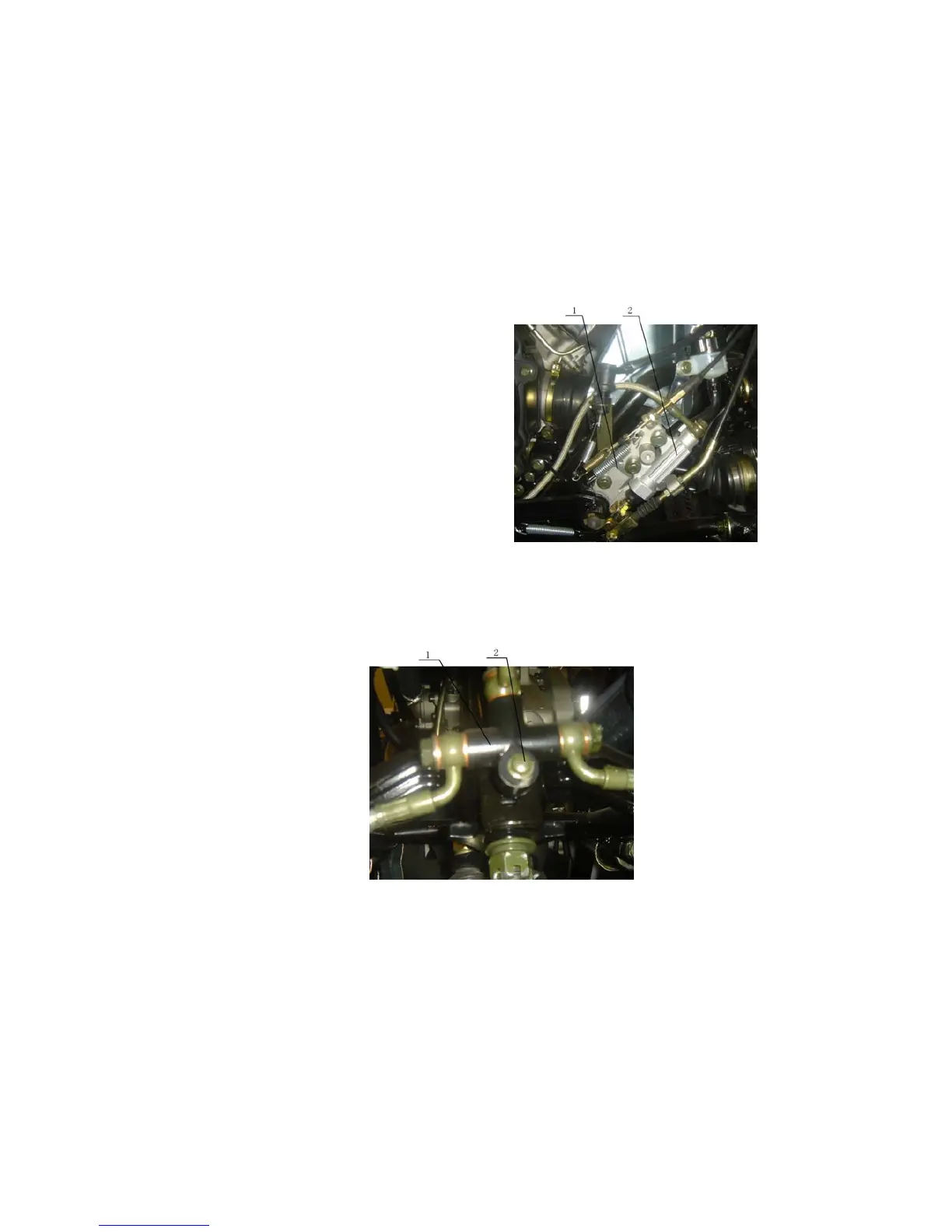

Figure 4-2-6
Figure 4-2-6
1)bottom seat of Disk Brake Pump
2)Disk Brake Pump unity
2、Remove the Front Fuel Pipe Brackets(Figure4-2-7)
Figure4-2-7
1).branch seat of Disk Brak Fuel Pipe
2).Hexagon Flange Bolts M8
3.Detach the Plate Clip nut and remove the Plate Clip(Figure4-2-3).
4、 Remove the Rront brake plate system(Figure4-2-3)
