5、Inspect the Disk Brake Shoe for wear condition. Brake shoe
must be replaced when worn out.

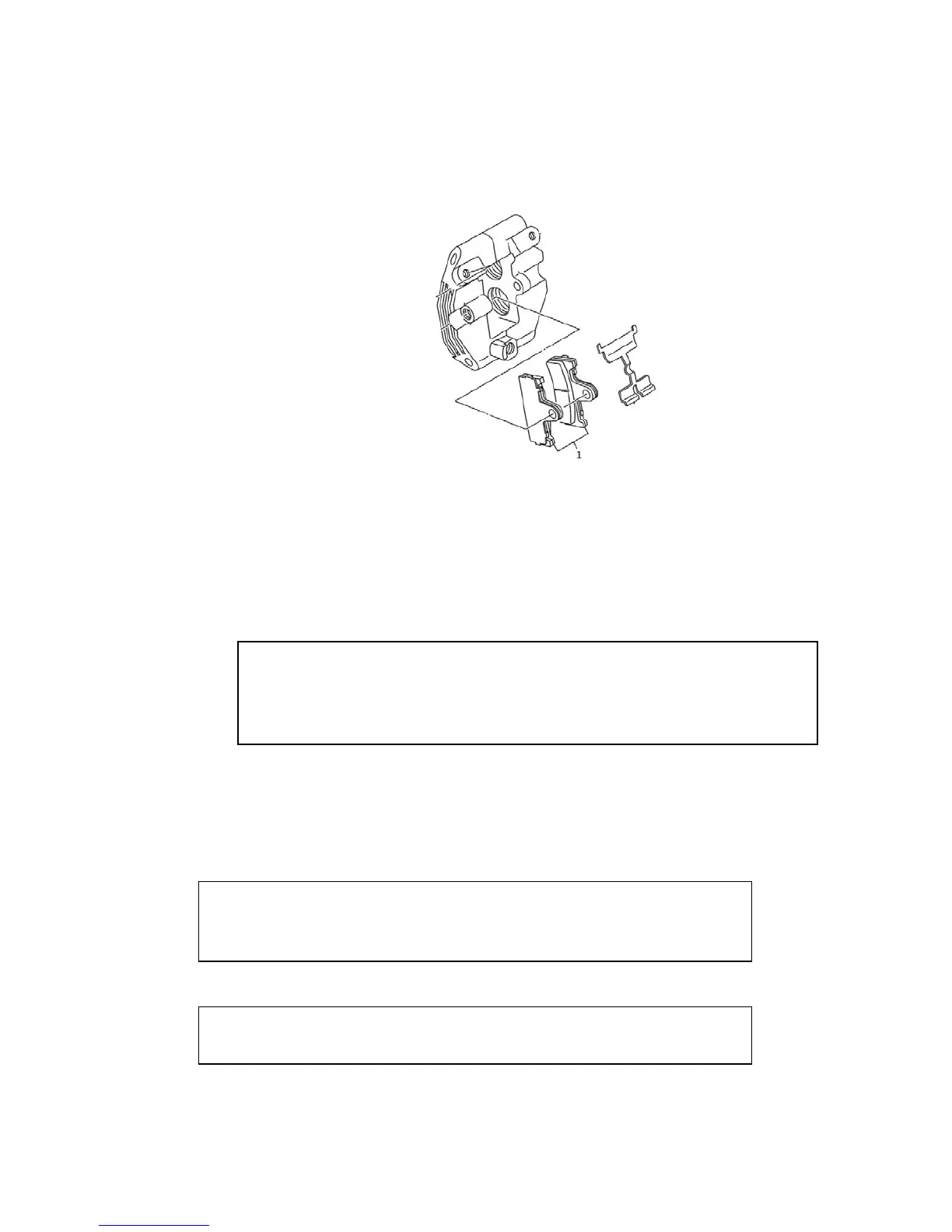

1、Brake Shoe
6、Inspect the Brake Shoe for maximum wear, distortion and
crack, in which case it must be replaced.
Maximum wear of Rear Disk Brake Plate is less than
2.5mm
4.2.2.6 Assembly of Rear Brake System
1Fix Disk Brake Plate onto the Bottom Seat with Special M8 Bolts
(6pcs).
Caution: Grease the bolt with thread glue
when fastening
Fastening Torque of bolt: 22 N.m -28N.m
2、Mount the Bottom Seat of Rear Disk Brake Plate onto rear
To Next Page
