70
5、L/R turning joint

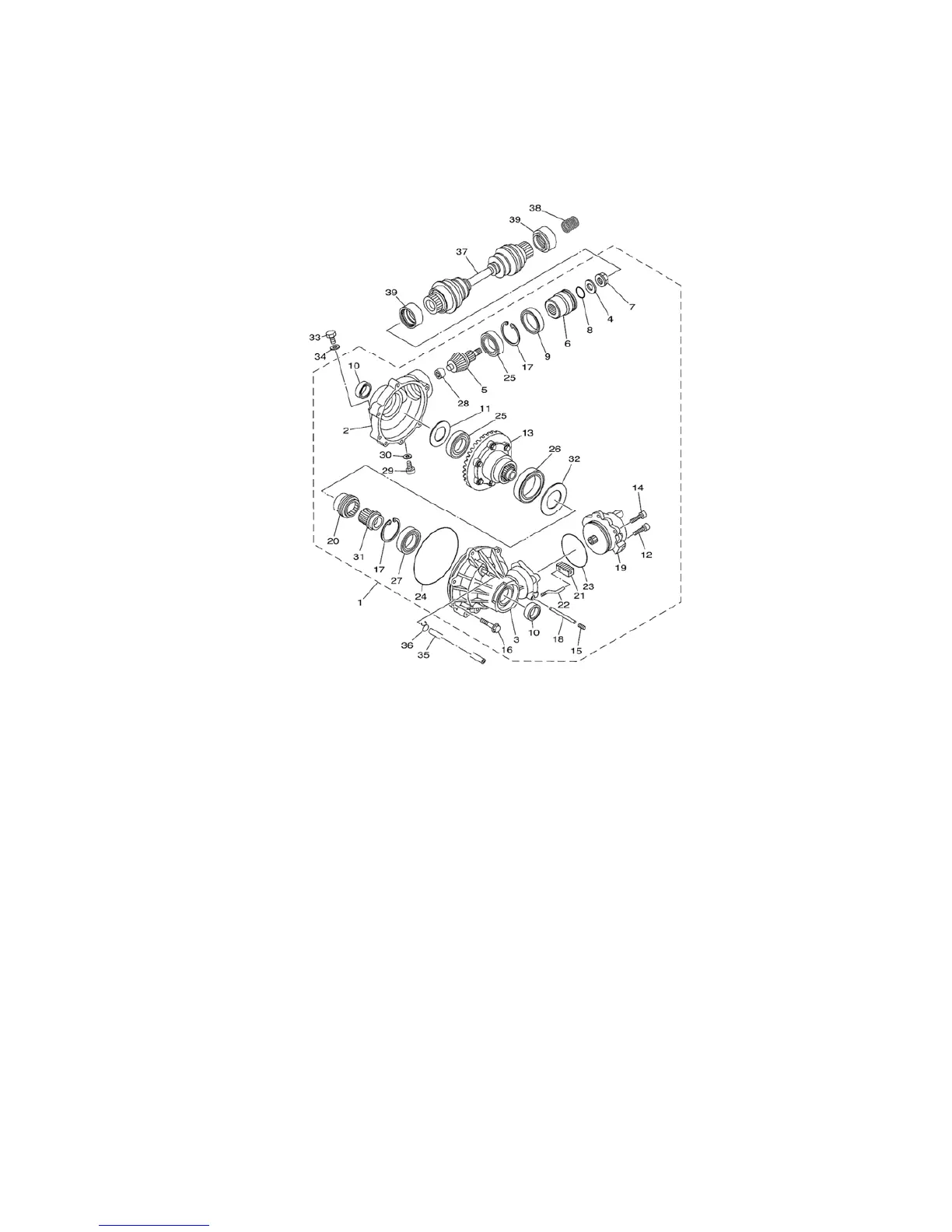

front tank components
1、gear-box assembly of front bridge 2、 the right cover 3、the left case 4、cushion 10.5
5、drive gear of front bridge
6、front driving axis pin sleeve 7、M10X1.25 flange locknut 8、0-ring of front bridge drive
gear f9、65X48oil seal 10、oil seal of rear constant velocity joint assembly 11、differential
–adjusted washer
12、M8X20 engine gearbox bolt 13、differential assembly 14、inner
hex bolt M8X25 15、
inner
hex bolt M8X10 16、hexagon flange bolt M10×25
17、clip used in66 18、5X80 cylindrical pin 19、engine gearbox assembly 20、adaptor 21、
cog rack
22、fork 23、0-rings of engine gearbox 24、0-rings of front cover 25、deep-groove ball
bearing6007 26、deep-groove ball bearing 6912 27、deep-groove ball bearing 16007
