PHOENIX WITH AIR HANDLER ON SIDE

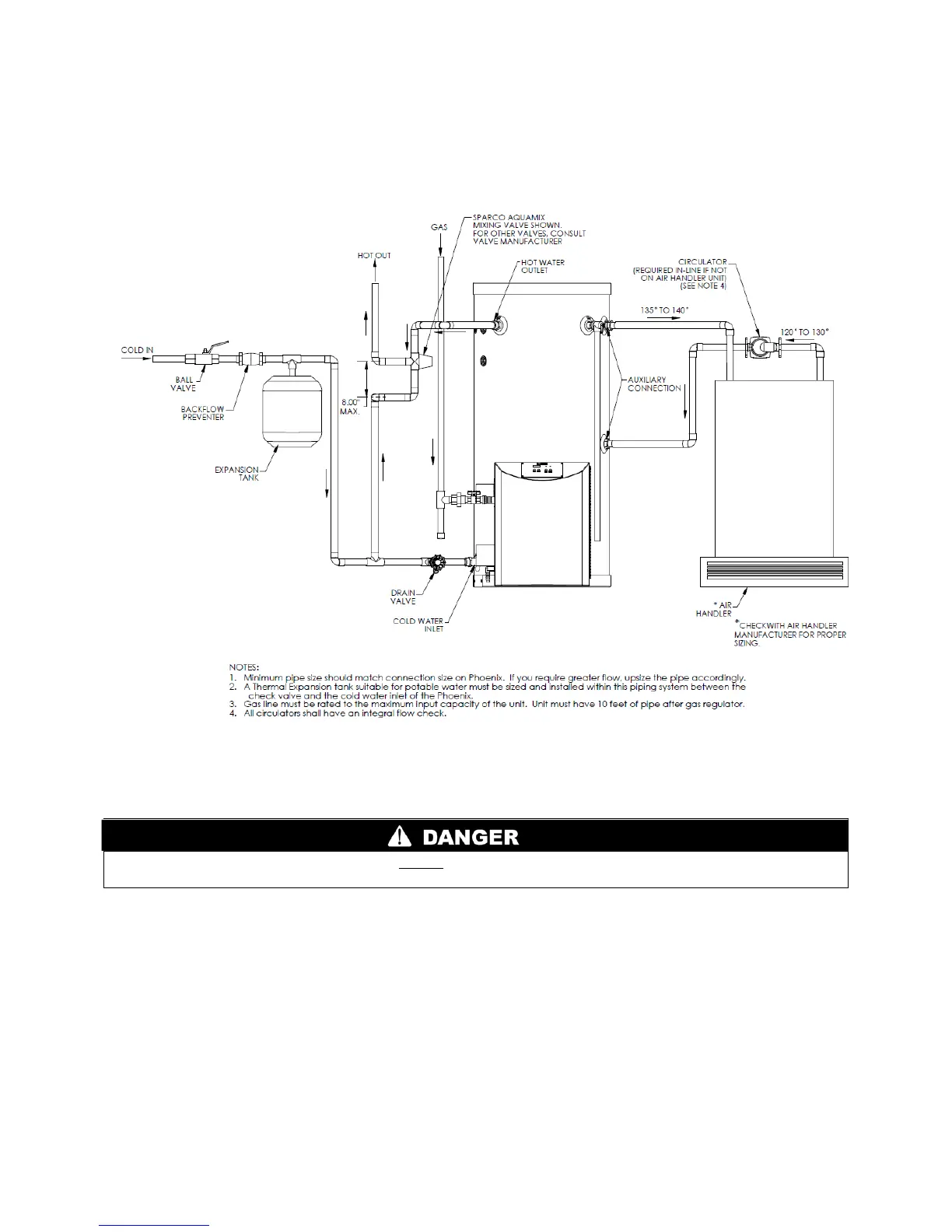

Figure 5 – LP-179-M - NOTE: This drawing is meant to demonstrate system piping only. The installer is
responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a
vacuum relief valve per 248 CMR. With air handlers, outdoor reset is available with an outdoor sensor. See
Part 9, Section D.
An ASSE 1017 thermostatic mixing valve MUST be installed when using outdoor reset. Failure to do so
could result in substantial property damage, serious injury, or death.
