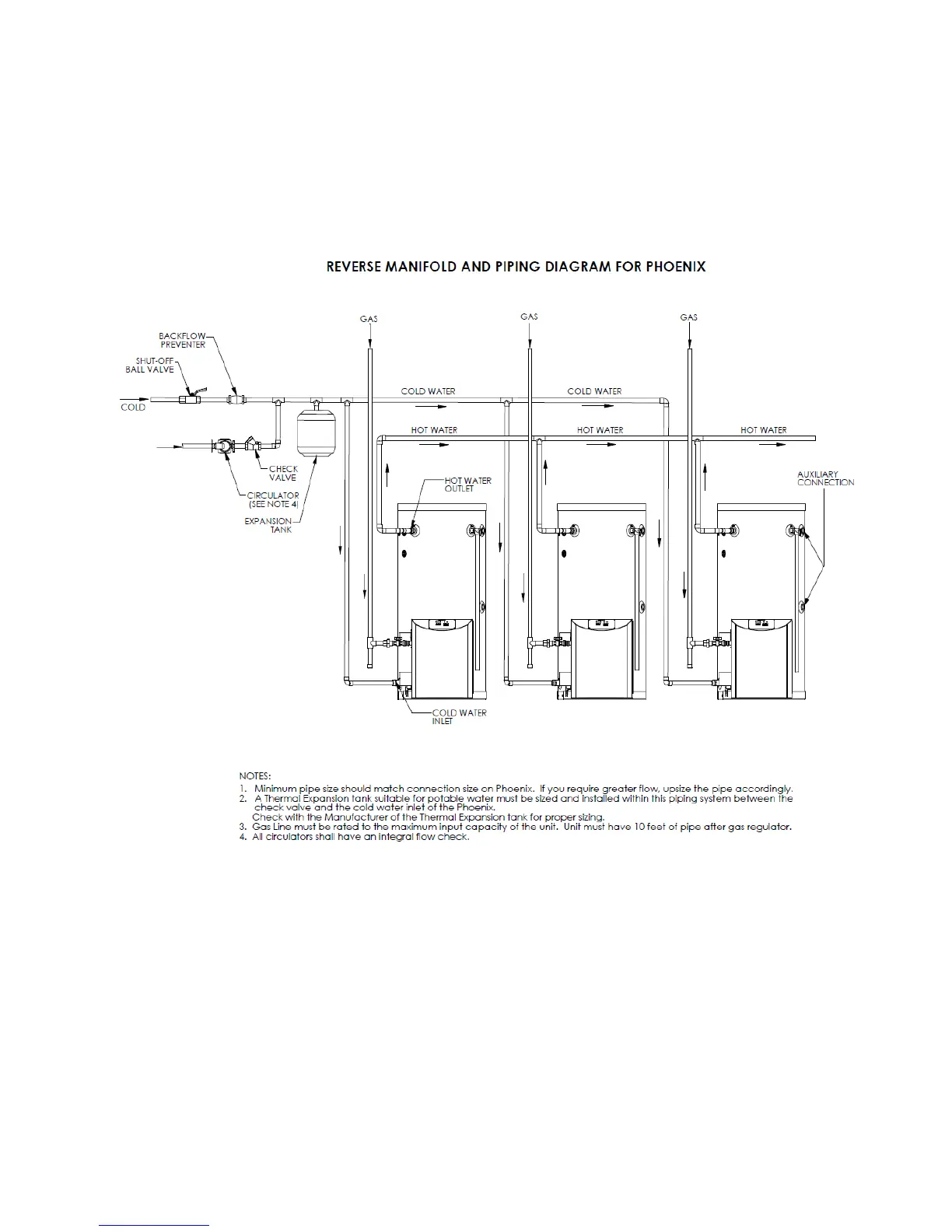

Figure 6 – LP-179-N - NOTE: This drawing is meant to demonstrate system piping only. The installer is
responsible for all equipment and detailing required by local codes. In Massachusetts, you must install a
vacuum relief valve per 248 CMR.
