HTP SSC-119 - Wiring Diagrams

lp-65 Rev. 1.6.15
10

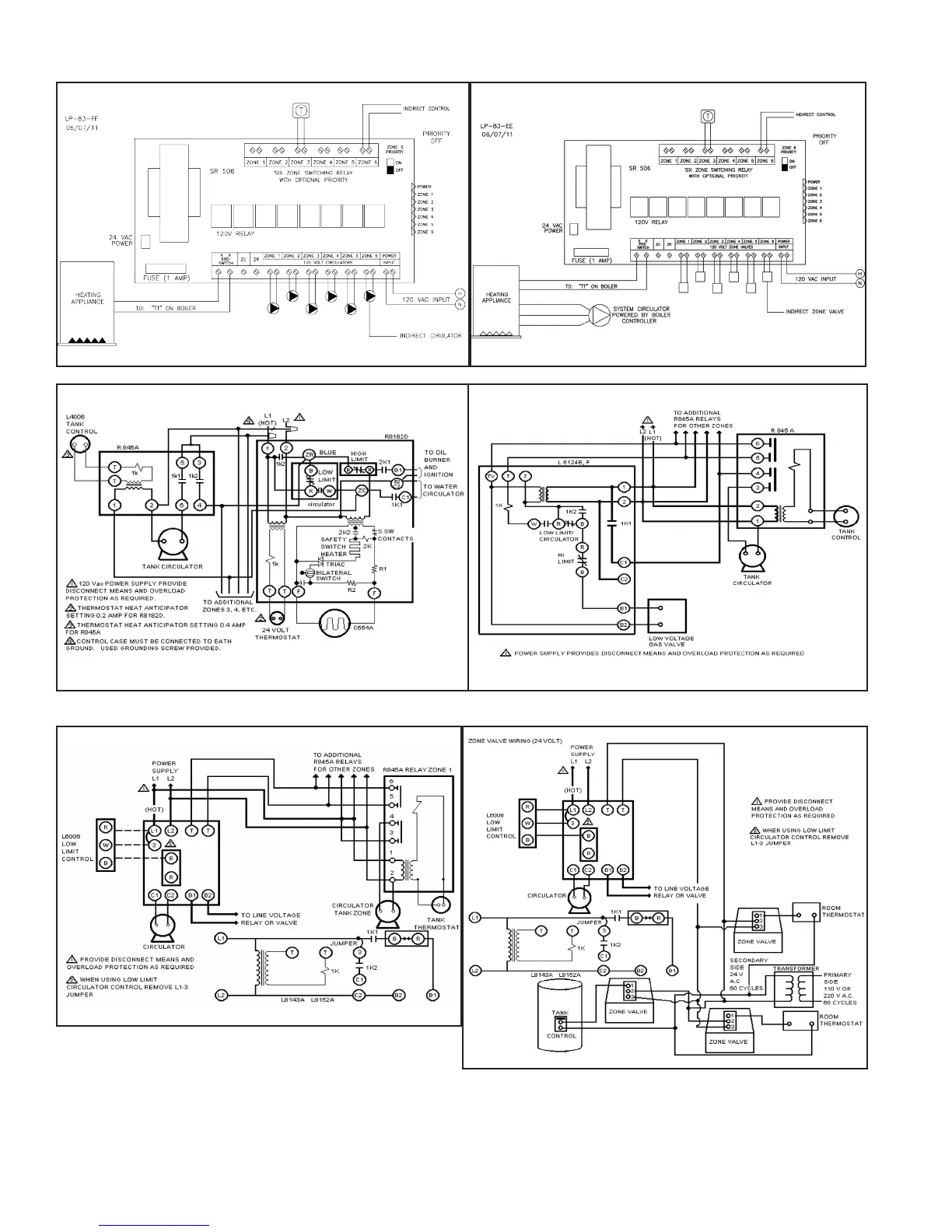

Figure 9 - Wiring with Circulators Figure 10 - Wiring with Zone Valves
C. Wiring Diagrams
Figure 12 - Zoning with Circulators - R8182D and R845A Relay
Figure 13 - Zoning with Circulators Using L8124 E-F, and R845A
Relay
Figure 14 - Using L8148A or L8152A Cold Start Boiler Control with
Circulators
Figure 11 - Using L8148A or L8152A Cold Start Boiler Control with
Zone Valves
