AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
5 Appendix
Issue 01 (2017-12-29)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
101

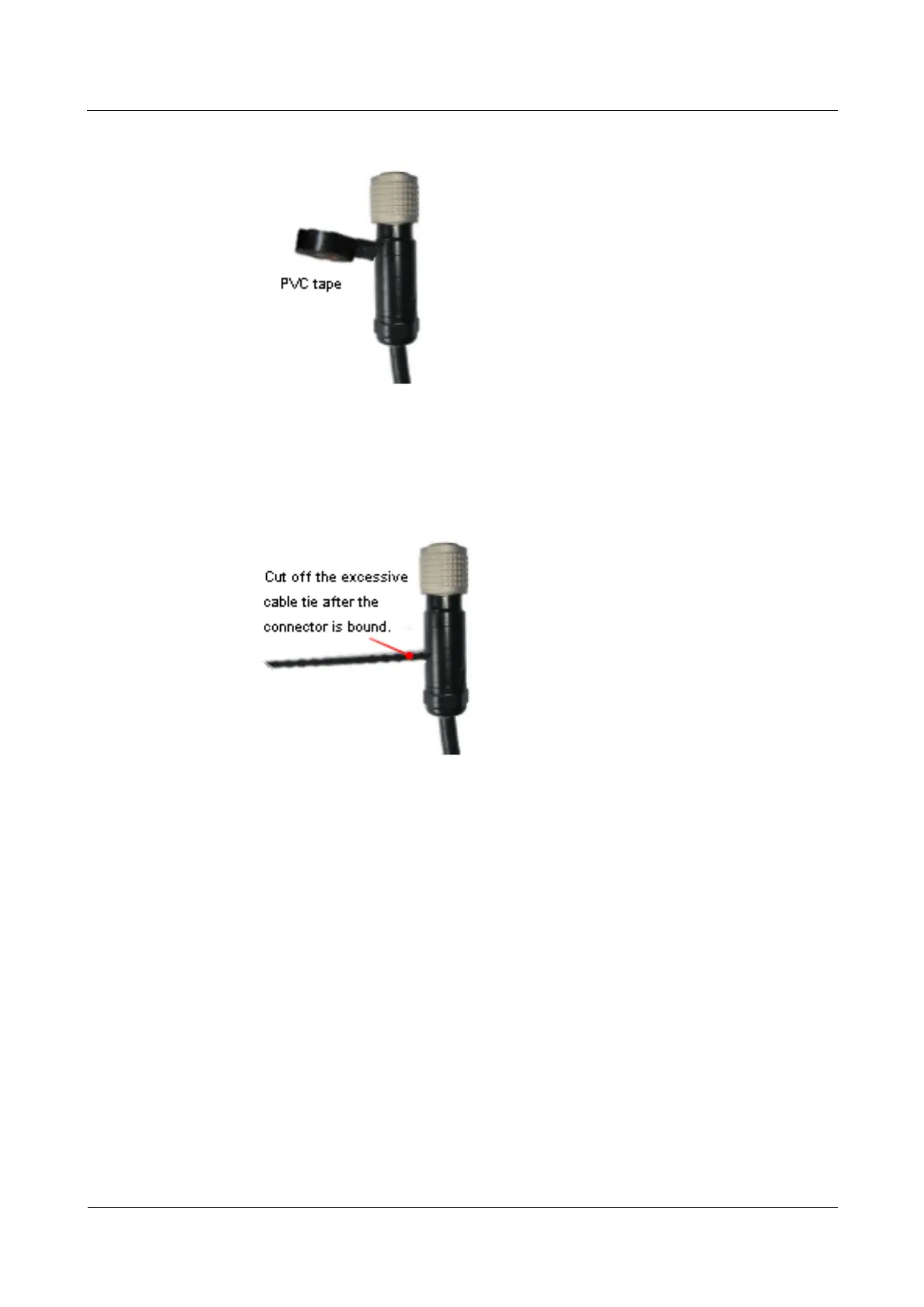

Figure 5-120 Wrapping three layers of the PVC tape
4. Tightly bind the PVC tape at the ends of the wrapping section, as shown in Figure 5-121.
Figure 5-121 Tightly binding the PVC tape
Step 2 Fix the DC power cable connector to the PWR port, as shown in Figure 5-122. Ensure that
positive and negative polarities are correct during the installation.
