cable, remove the cable, cut the split wires, and then strip the jacket and install the cable
again.
Step 6 Twist the shield layers into one strand and insert it into the shield slot, tighten the tail screw,
and fasten the shielded layer with tightening torque 1.4 N•m, as shown in Figure 5-17.

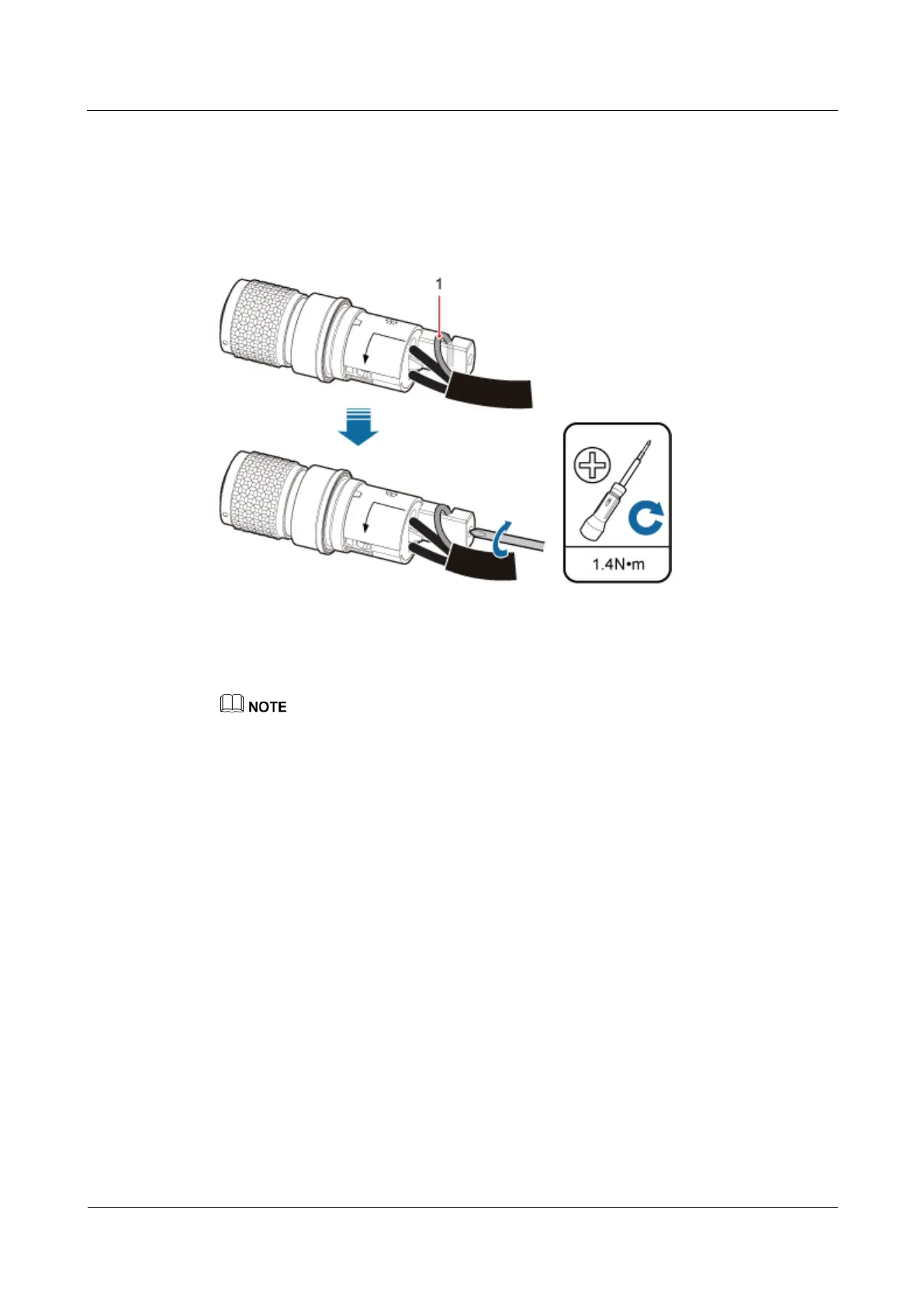

Figure 5-17 Compacting the shield layer
Cut the extra shield layer using the diagonal pliers.
Step 7 Tighten the socket and enclosure until the red line on the socket is invisible, as shown in
Figure 5-18.
