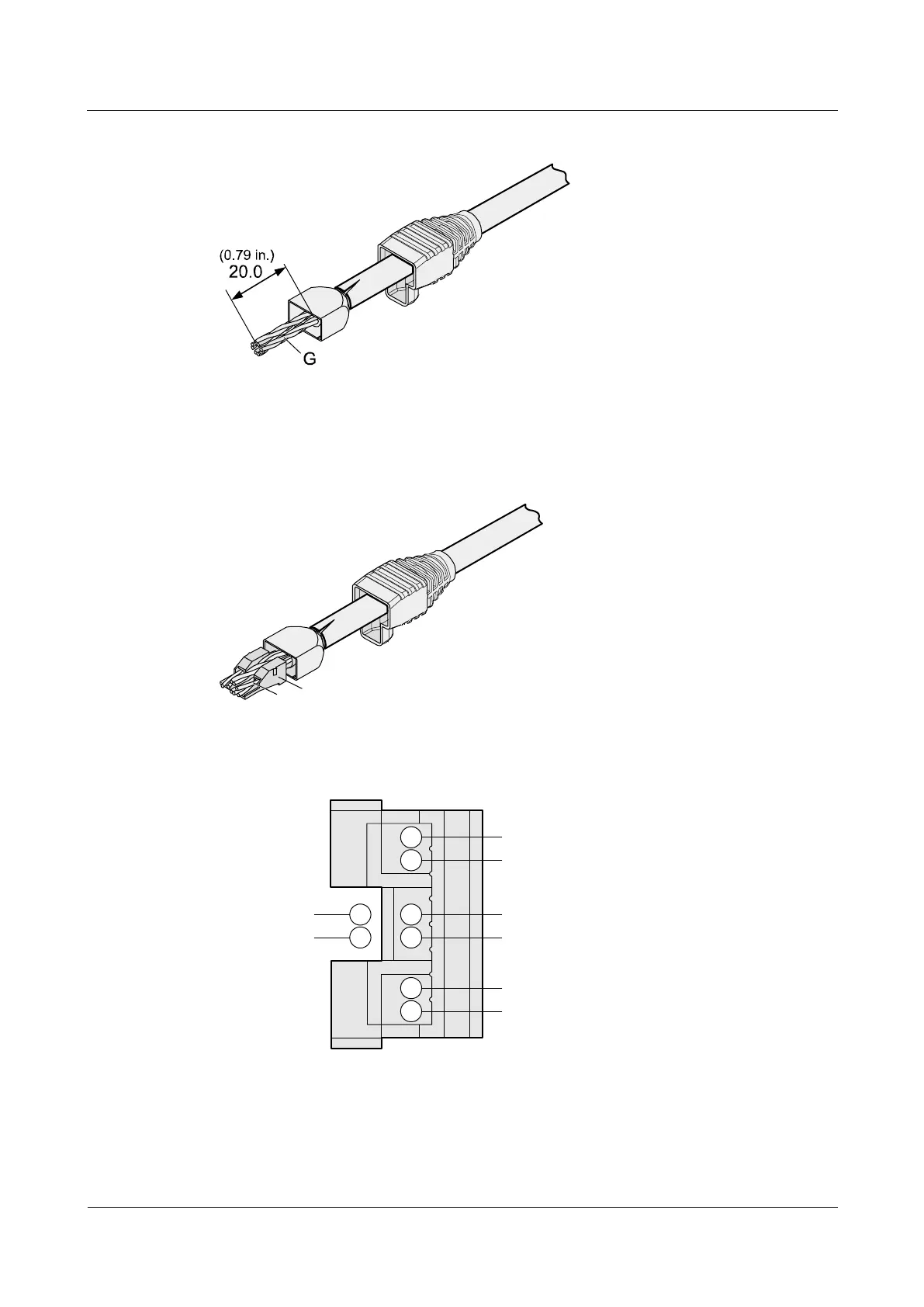

Figure 5-40 Removing the shield layer of a twisted-pair cable (unit: mm (in.))
Step 5 Lead the four pairs of twisted-pair wires through the wire holder, as shown in Figure 5-41 and
Figure 5-42. Ensure that the colored wires are in the correct location in the cable.
Figure 5-41 Leading wires through the wire holder
Figure 5-42 Cable locations in a wire holder
White-Green
Green
White-Orange
Orange
Blue
White-Blue
White-Brown
Brown
Step 6 Align the four pairs of cables in the holder, as shown in Figure 5-43. The connections
between the wires and the pins are shown in Figure 5-44 and listed in Table 5-6.
