Huawei AP7052DN User Manual

AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
5 Appendix
Issue 01 (2017-12-29)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
63

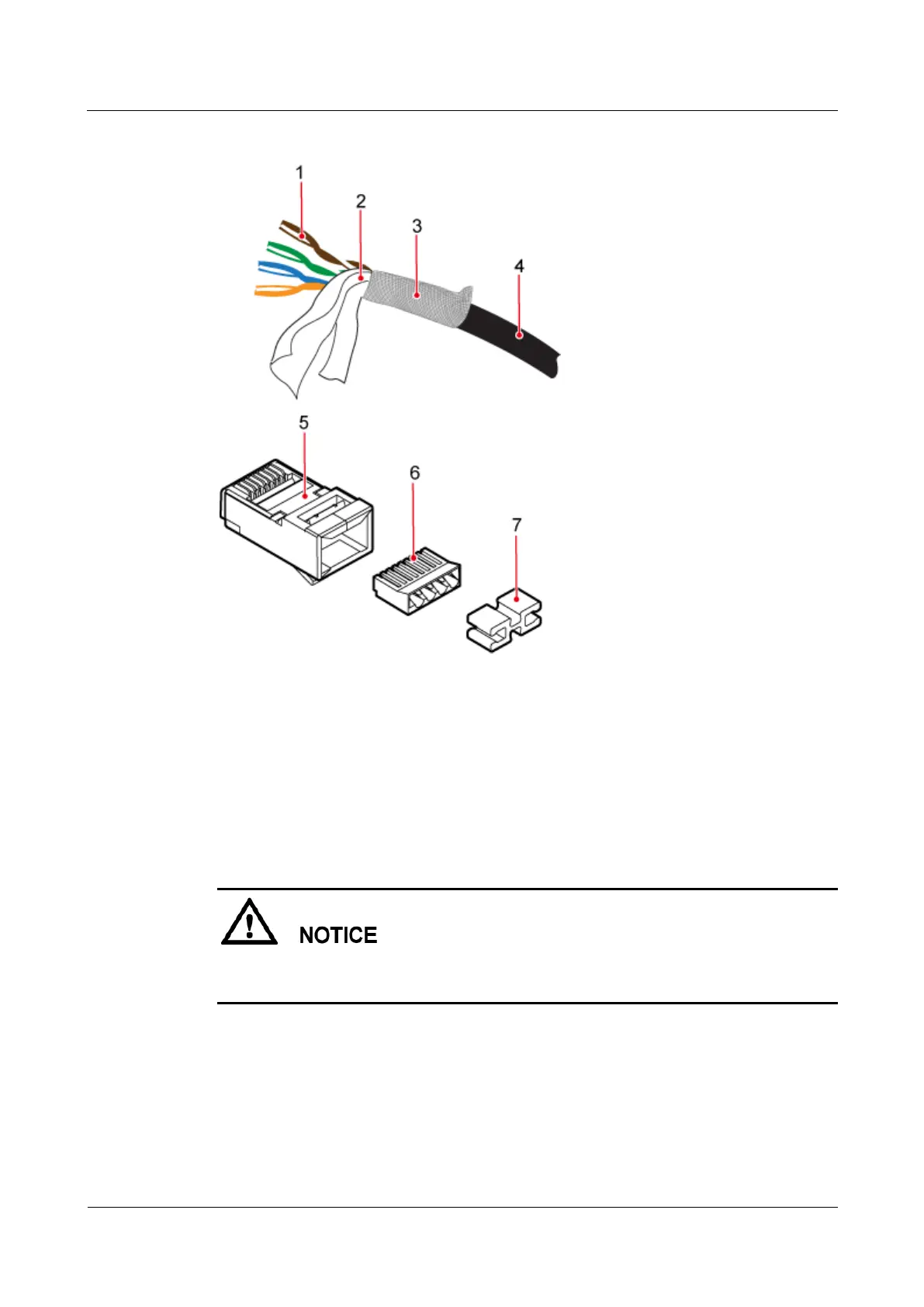

Figure 5-49 Shielded RJ45 connector
1: Core
wires
2: Aluminum
foil
3: Braid
shield
4: Outer
jacket
5: RJ45
connector
6: Load
bar
7: Cable
support rack
Procedure
Step 1 Strip 20 mm outer jacket off the network cable, peel off the braid shield backward, and cut off
the aluminum foil and protection band, as shown in Figure 5-50.
Ensure that the shielded layer is intact when stripping outer jackets off the network cable.
Keep the cable insulation intact when stripping the shielded layer.
