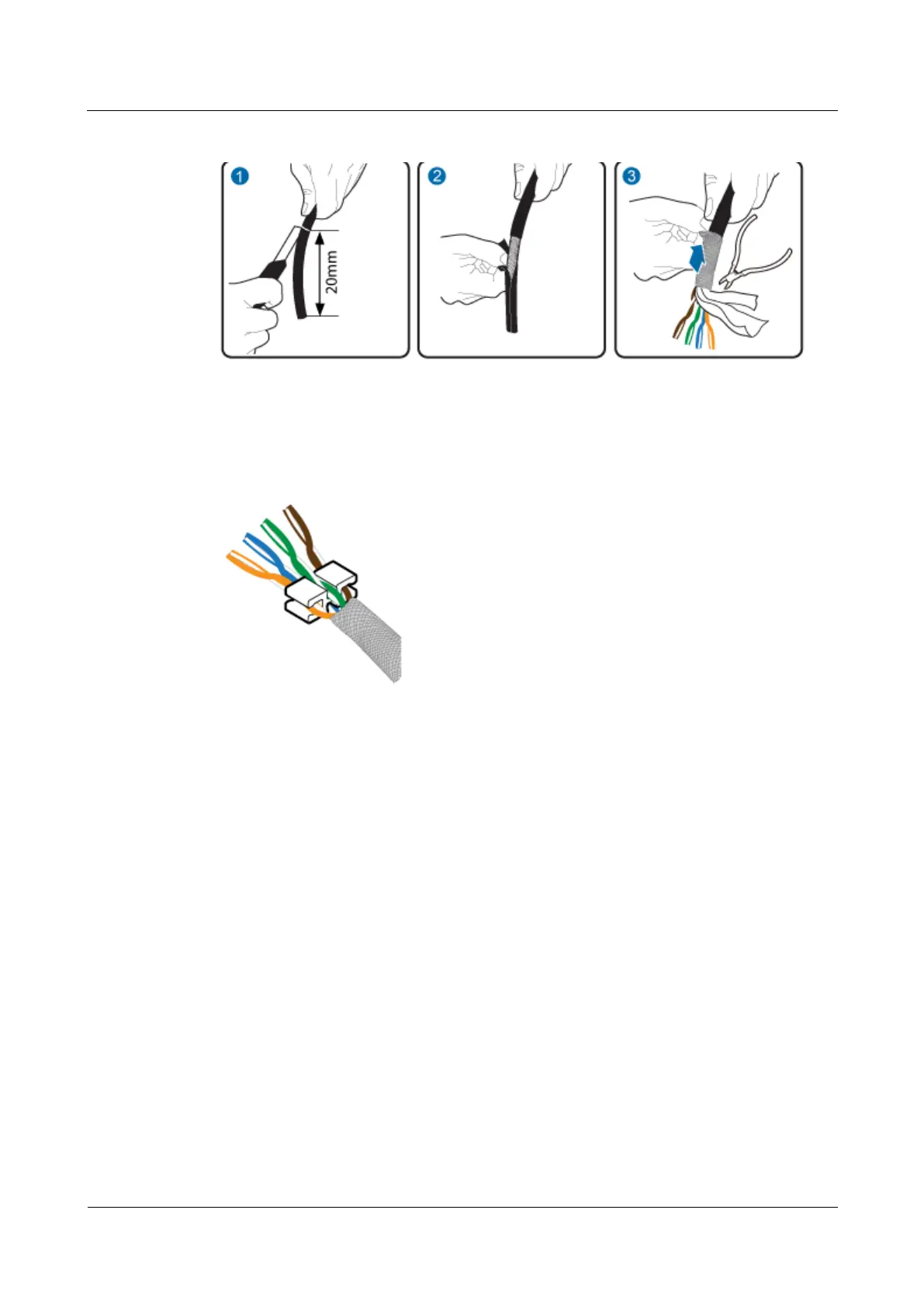

Figure 5-50 Stripping the cable
Step 2 Arrange core wires in the order of colors shown in Figure 5-51 and fix the cable support rack
to the bottom of the core wires.
Figure 5-51 Core wire order
Step 3 Hold the arranged core wires and route them through the load bar, as shown in Figure 5-52.
Table 5-7 shows the mapping between the core wires and pins of the connector.
