Huawei AP7052DN User Manual

AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
5 Appendix
Issue 01 (2017-12-29)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
66

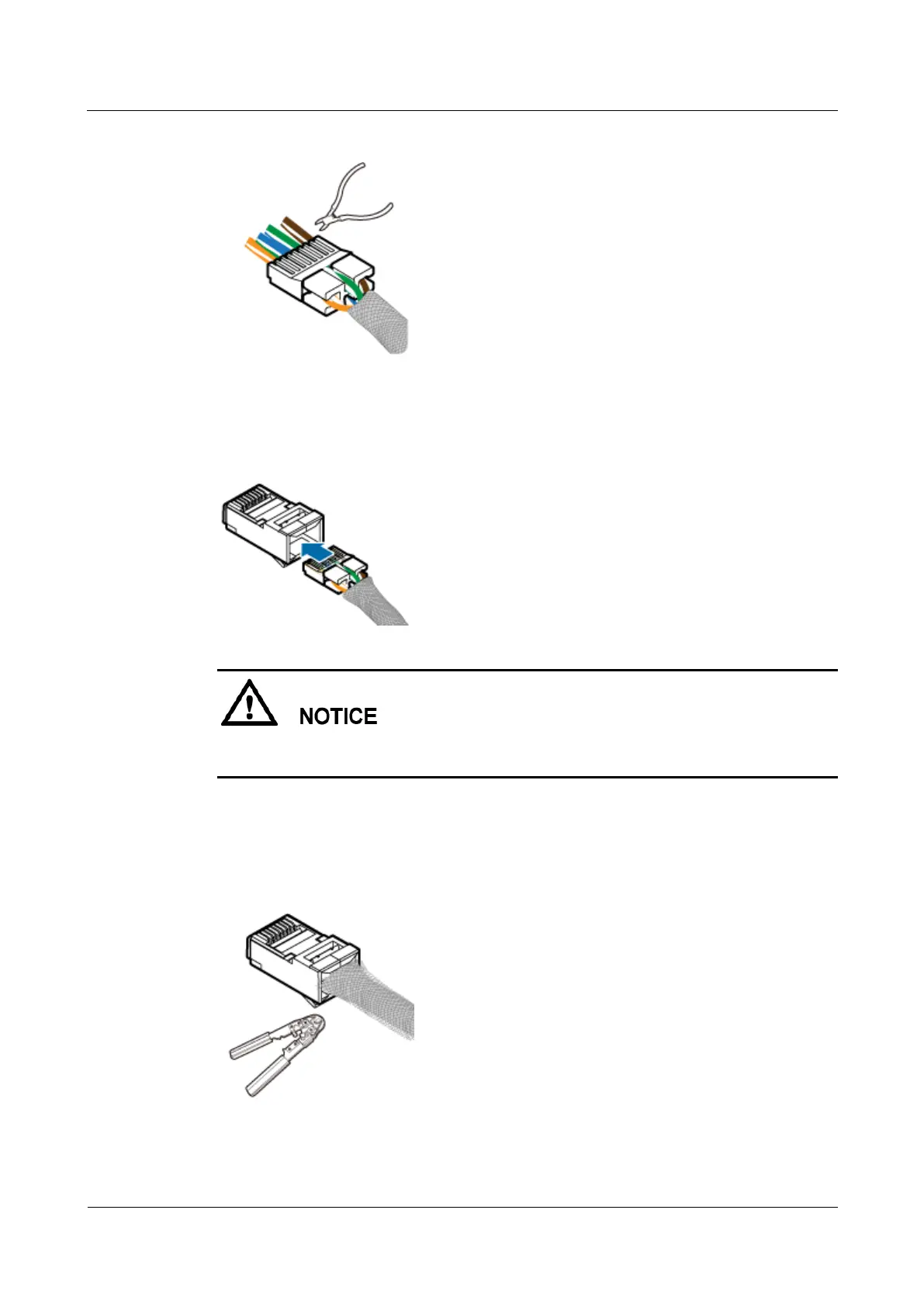

Figure 5-53 Neatly cutting edge cables
Step 5 Insert the load bar into the RJ45 connector, as shown in Figure 5-54.
Figure 5-54 Inserting the load bar into the RJ45 connector
Cables must be inserted into the bottom of the connector, which can be checked on the side or
front end face of the connector.
Step 6 Use the crimping tool to crimp the connector, as shown in Figure 5-55. Use cutting pliers to
neatly cut braid shields exposed out of the connector along the load bar, as shown in Figure
5-56.
Figure 5-55 Crimping the connector
