AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
5 Appendix
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

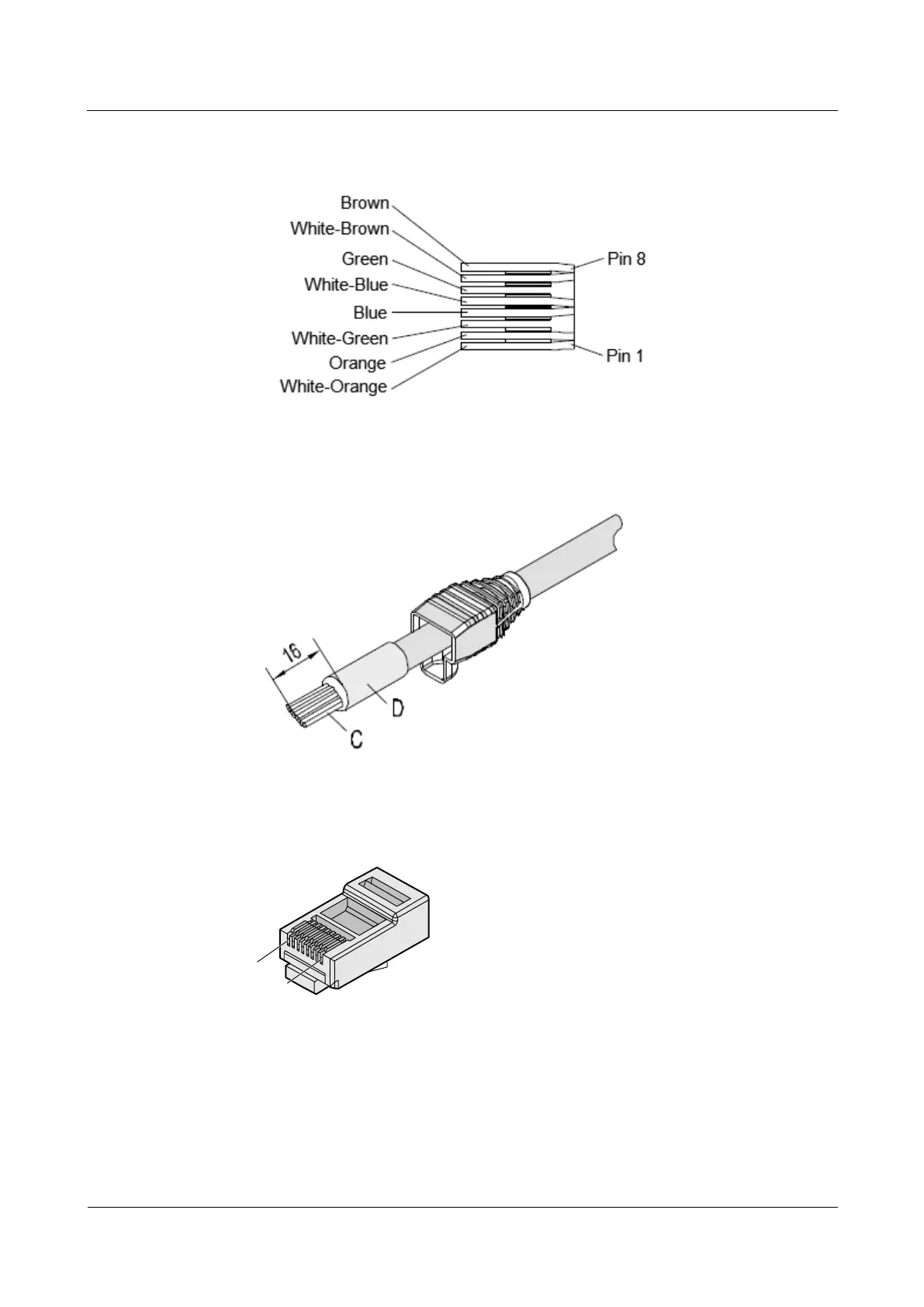

Figure 5-69 Mapping between colors and pins
Figure 5-70 Neatly cutting the twisted pair
Figure 5-71 Pin arrangement of the connector
Pin8
Pin1
Step 5 Insert the arranged four twisted pair cables into the connector, as shown in Figure 5-72.
