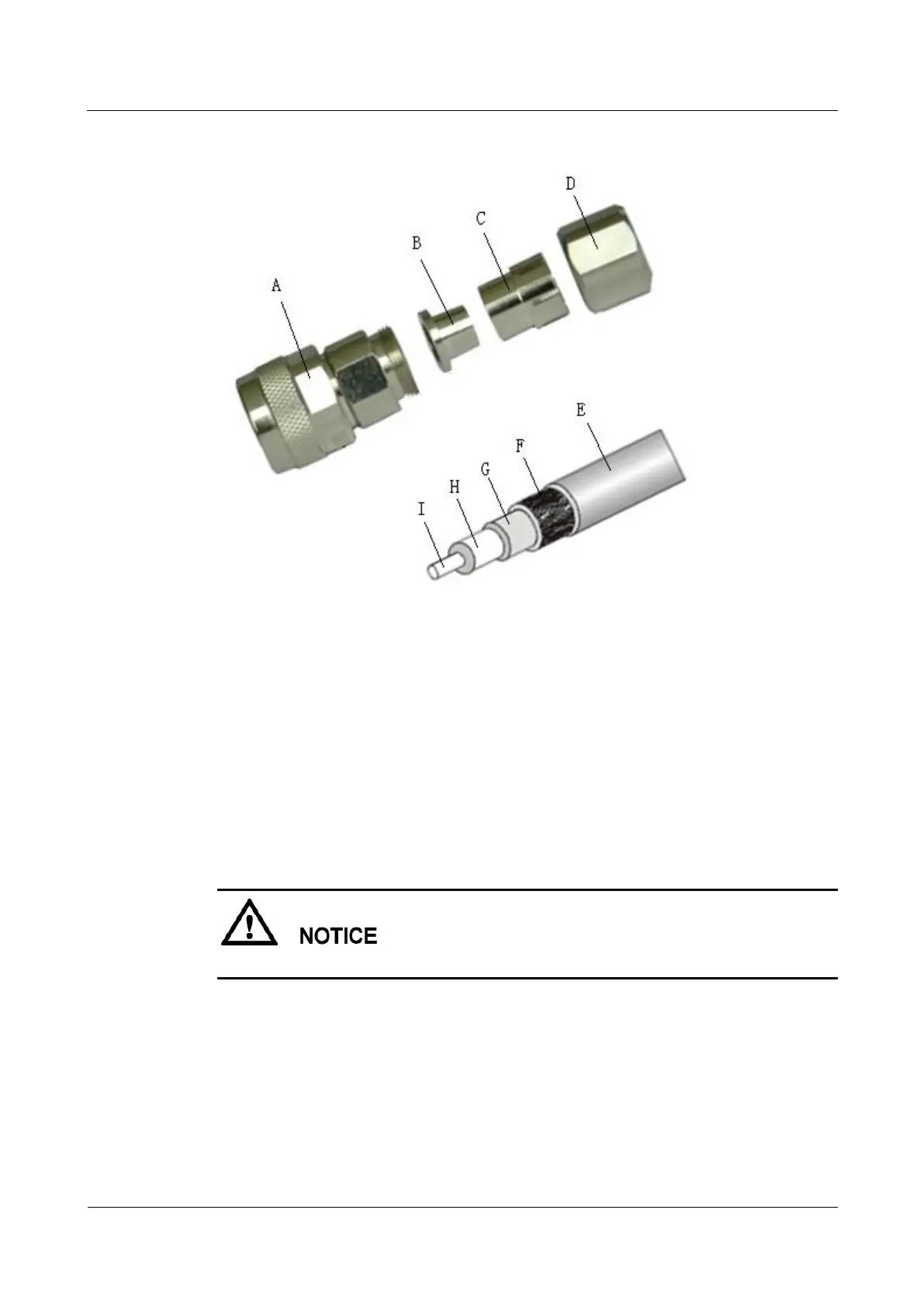

Figure 5-96 Coaxial N connector and RG8U feeder
A: Connector body
B: Lining
C: Clip
D: Nut
E: Cable jacket
F: Shielded layer
of the feeder
G: Aluminum foil of
the feeder
H: Insulation medium
of the feeder
I: Internal conductor
of the feeder
-
-
-
Procedure
Step 1 Strip the feeder with the length shown in Figure 5-97.
Ensure that the shielded layer F is intact after the stripping.
