AP7052DN&AP7152DN
Hardware Installation and Maintenance Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

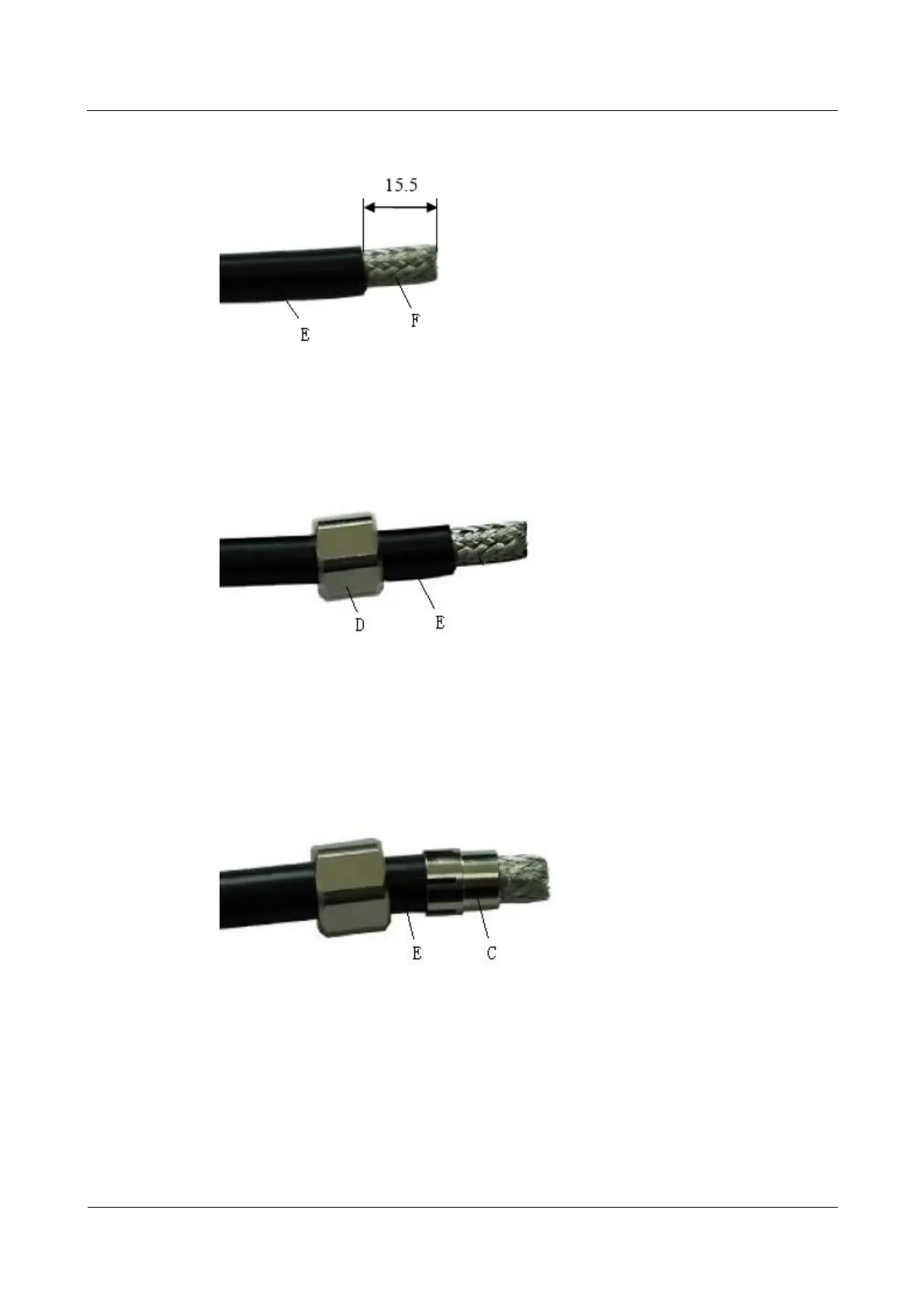

Figure 5-97 Stripping the feeder
Step 2 Route the Cable jacket (E) through the nut (D), as shown in Figure 5-98.
Figure 5-98 Installing the nut
Step 3 Install the clip (C) on the Cable jacket (E) and move the clip until the clip is close to the Cable
jacket, as shown in Figure 5-99.
Figure 5-99 Installing the clip
Step 4 Peel off the shielded layer (F) to the direction of the clip (C) so that the aluminum foil (G) is
exposed, as shown in Figure 5-100.
