Background Information
In network bridge mode, the CPE performs a layer-2 Ethernet switch function.
The CPE forwards layer-2 Ethernet data by setting up L2GRE tunnels with interconnected
network elements (NEs).
When L2 GRE tunnels are enabled, the CPE DHCP server is disabled automatically. A
computer or other telecommunication devices (such as devices connected to Wi-Fi) connected
to the CPE require static configuration when obtaining IP addresses. Alternatively, a DHCP
server can be enabled by the peer NE that has a GRE tunnel function to dynamically assign IP
addresses to the devices.
Procedure
6 Log in to the WebUI, Please refer to the procedure 4.1
7 Choose LAN > Bridge Settings. Select the Enable check box next to L2GRE. Set
L2GRE Remote IP. This IP address must be the local tunnel IP address for the NE that
has the Generic Routing Encapsulation (GRE) tunnel function. Click Submit

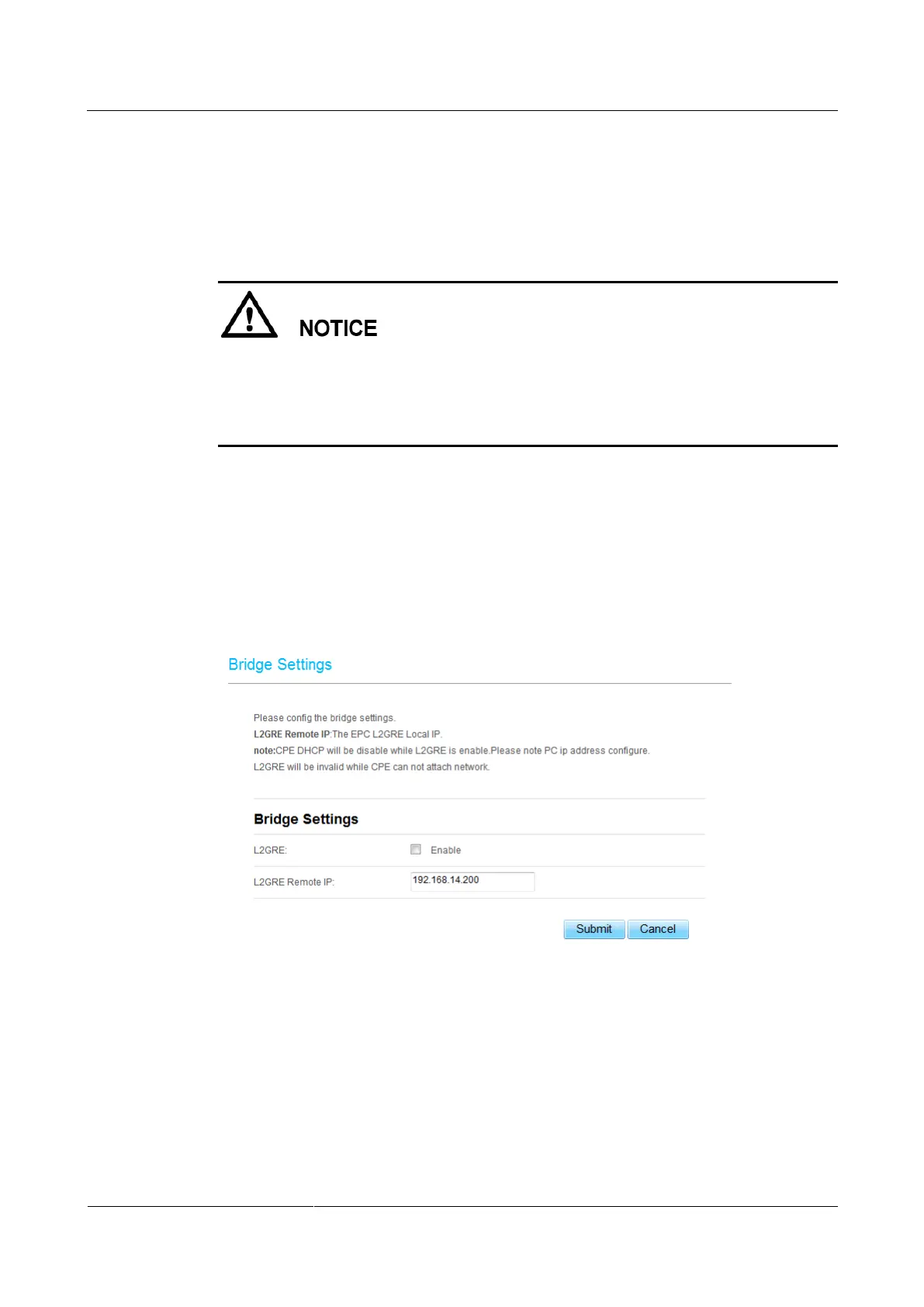

Figure 4-2 Bridge Settings
----End
4.4 DHCP Relay
Prerequisites
The DHCP server and CPE are installed.
