eA660 Series CPE
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

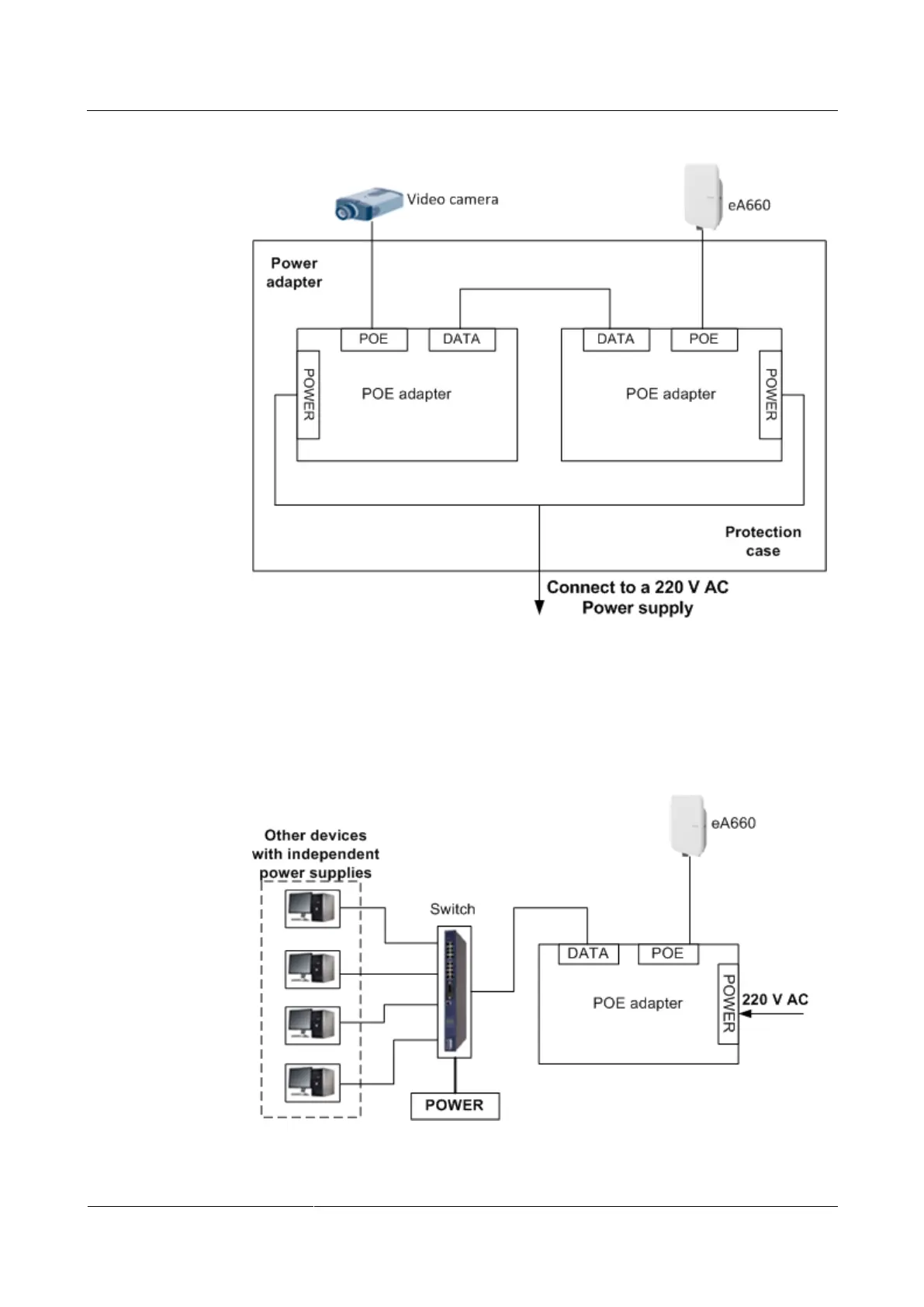

Figure 1-2 The eA660 connected to a video camera.
Use a network cable to connect the eA660 to an external device. If the eA660 connects to
a single device, connect the power adapter directly to the eA660. If the eA660 connects
to multiple devices, connect the power adapter to a Hub or switch and then to the eA660,
as shown in Figure 1-3.
Figure 1-3 The eA660 connected to multiple devices
