Huawei FusionServer Pro 1288H V5 User Manual

7 DVD drive 8 Indicator board
9 VGA board 10 Heat sinks
11 Processors 12 Memory modules
13 TPM/TCM 14 Screw-in RAID controller
card
15 Mainboard 16 FlexIO card
17 PCIe riser module 1 18 PCIe riser module 2
1.3 Logical Structure

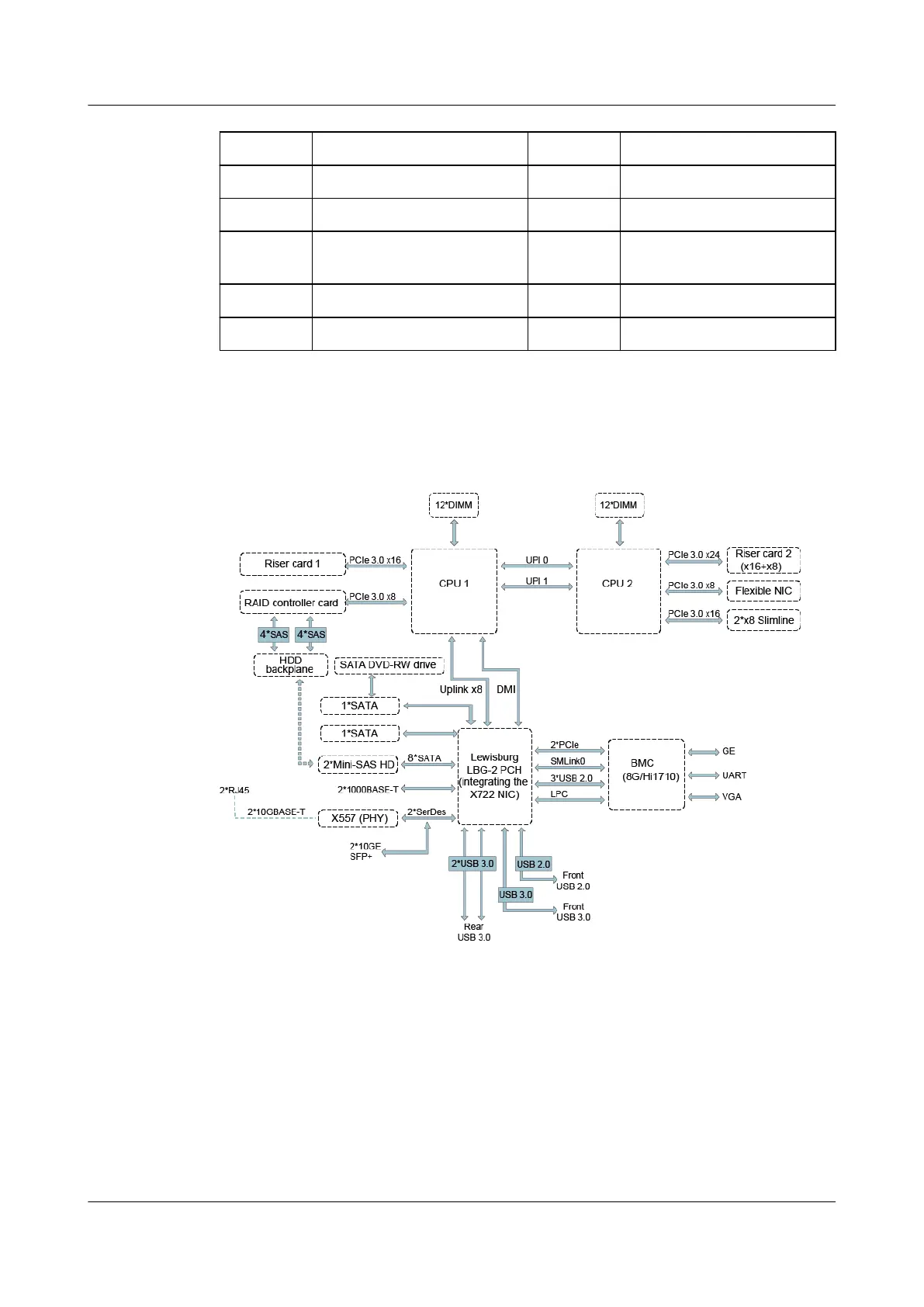

Figure 1-3 1288H V5 logical structure
● The server supports one or two Intel
®
Xeon
®
Scalable processors.
● The server supports up to 24 memory modules.
● The CPUs (processors) interconnect with each other through two UPI links at
a speed of up to 10.4 GT/s.
● Two PCIe riser cards connect to the processors through PCIe buses to provide
ease of expandability and connection.
● The RAID controller card on the mainboard connects to CPU 1 through PCIe
buses, and connects to the drive backplane through SAS signal cables. A
variety of drive backplanes are provided to support
dierent local storage
congurations.
FusionServer Pro 1288H V5 Server
User Guide 1 Overview
Issue 13 (2020-06-05) Copyright © Huawei Technologies Co., Ltd. 3

Huawei FusionServer Pro 1288H V5 Specifications

General

Processor	Intel Xeon Scalable processors
Memory	Up to 3 TB
Memory Slots	24 DDR4 DIMM slots
Storage	Supports up to 10 x 2.5-inch SAS/SATA/SSD drives or 4 x 3.5-inch SAS/SATA drives
RAID Support	RAID 0, 1, 10, 5, 50, 6, 60
Network	2 x GE + 2 x 10GE ports
Power Supply	1+1 redundant, hot-swappable PSUs
Form Factor	1U rack
Number of Processors	Up to 2
