Chapter 4 RF Configuration
4.1 1+0 Configuration
For a 1+0 microwave transmission system, there is one active channel and there is no
standby channel.
4.1.1 Configuration Requirements
Table 4-1 Requirements for 1+0 configuration
Component Configuration Requirement
IF1A/IF1B 1 PCS
ODU 1 PCS
Antenna 1 PCS
4.1.2 System Block Diagram
Service
interface
unit
IF unit
ODU
RF signal
IF signal
IDU
Cross-connect unit
Service
signal
Fan and
power
unit
Clock
unit
Control
unit
Auxiliary
interface
unit
Antenna
Control and
overhead bus

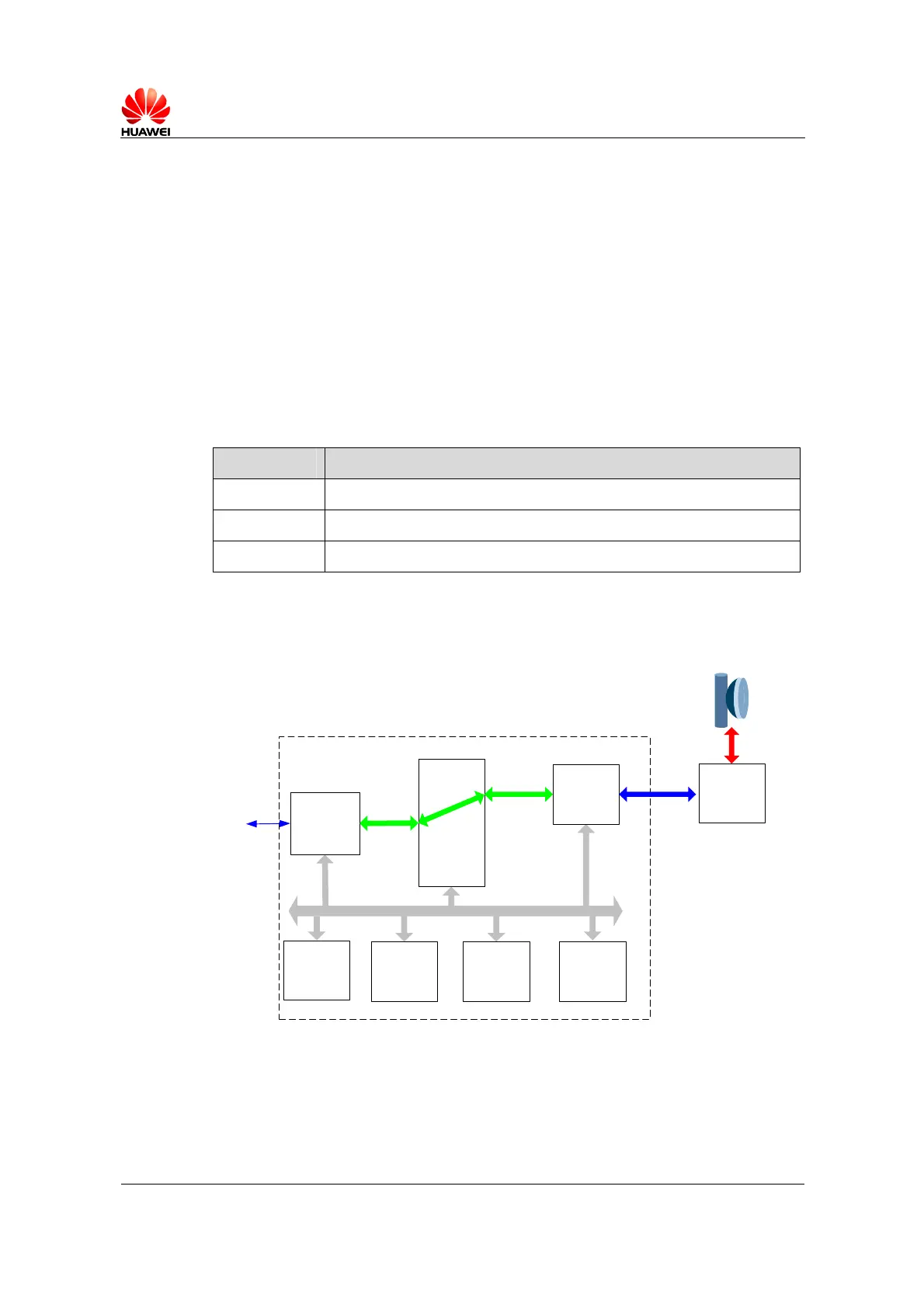

Figure 4-1 Block diagram of a 1+0 microwave transmission system
