4.2 2+0 Protection Configuration
For a 2+0 microwave transmission system, there are two active channels and there is
no standby channel.
4.2.1 Configuration Requirements
Table 4-2 Requirements for 2+0 configuration
Component Configuration Requirement
IF1A/IF1B 2 PCS
ODU 2 PCS
Antenna 2 PCS
4.2.2 System Block Diagram
Service
interface
unit
ODU
RF signal
IF signal
IDU
Cross-connect unit
Service signal
Fan and
power
unit
Clock
unit
Control
unit
Auxiliary
interface
unit
IF unit
IF unit
ODU
IF signal
RF signal
Service
signal
Antenna
Antenna
Control and
overhead bus

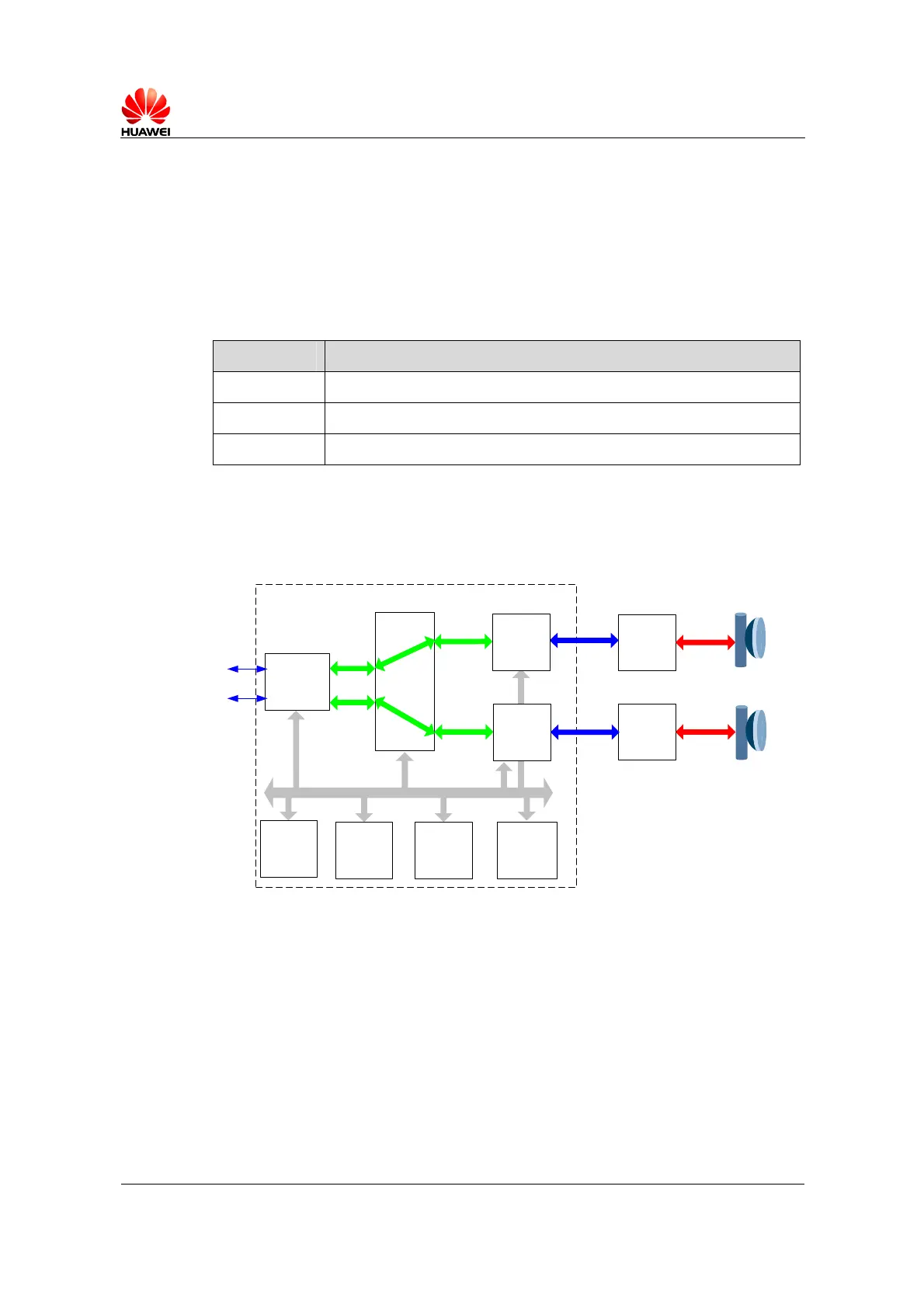

Figure 4-2 Block diagram of a 2+0 microwave transmission system
4.3 1+1 HSB Configuration
In a 1+1 hot standby (HSB) system, each IF unit and ODU have a hot standby.
During the switching of 1+1 HSB, services can be interrupted.
