OptiX RTN 600
Product Description
Commercial in Confidence Page 24 of 44
Chapter 5 Networking
5.1 Point-to-Point
In this networking mode, the services between two nodes are transported over
microwave.
In this case, the OptiX RTN 600 usually adopts 1+0 configuration. For key services,
1+1 configuration is also used.
OptiX RTN 600 OptiX RTN 600

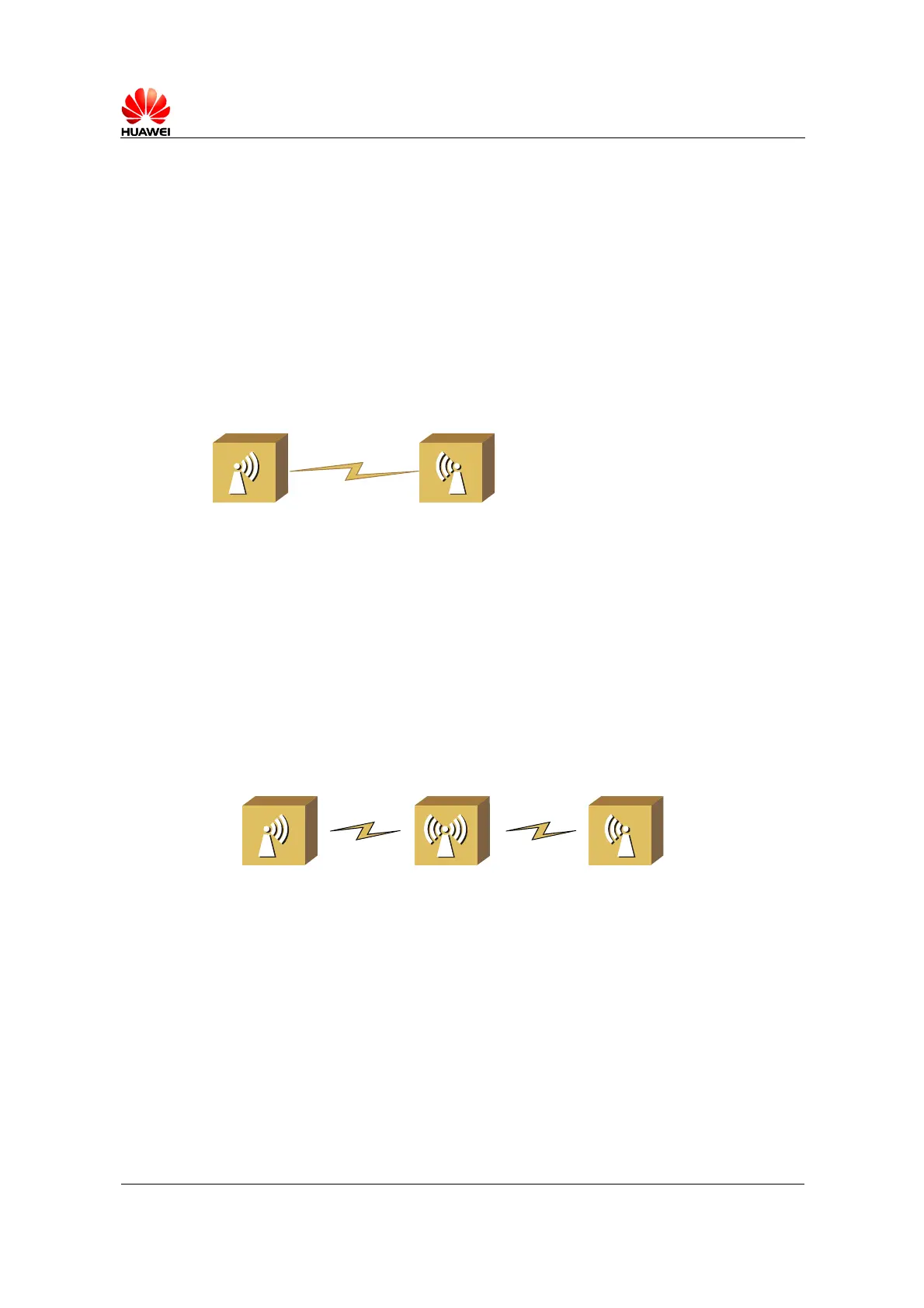

Figure 5-1
Point-to-point networking
5.2 Chain Networking
In this networking mode, all the microwave transmission nodes are connected in
series, but the head and tail nodes are not directly connected.
Figure 5-2 shows a chain network without protection for its microwave links. In this
example, the terminal nodes adopt 1+0 configuration, and the intermediate one
adopts 2+0 configuration.
OptiX RTN 600 OptiX RTN 600OptiX RTN 600
1+0 2+0 1+0
Figure 5-2
Chain networking (without protection)
Figure 5-3 shows a chain network that offers protection to its microwave links. In this
example, the terminal nodes adopt 1+1 configuration, and the intermediate nodes
consist of two OptiX RTN 600 systems configured with 1+1 protection. The two
systems are connected through an E1 cable, STM-1o fiber, or STM-1e cable. This
mode can also be considered as the interconnecting of two point-to-point networks.
