Huawei OptiX RTN 600 - Microwave Ring Networking

OptiX RTN 600 Product Description
Commercial in Confidence Page 26 of 44
OptiX RTN 600
OptiX RTN 600
STM-1 SNCP ring
ADM
ADM
ADM

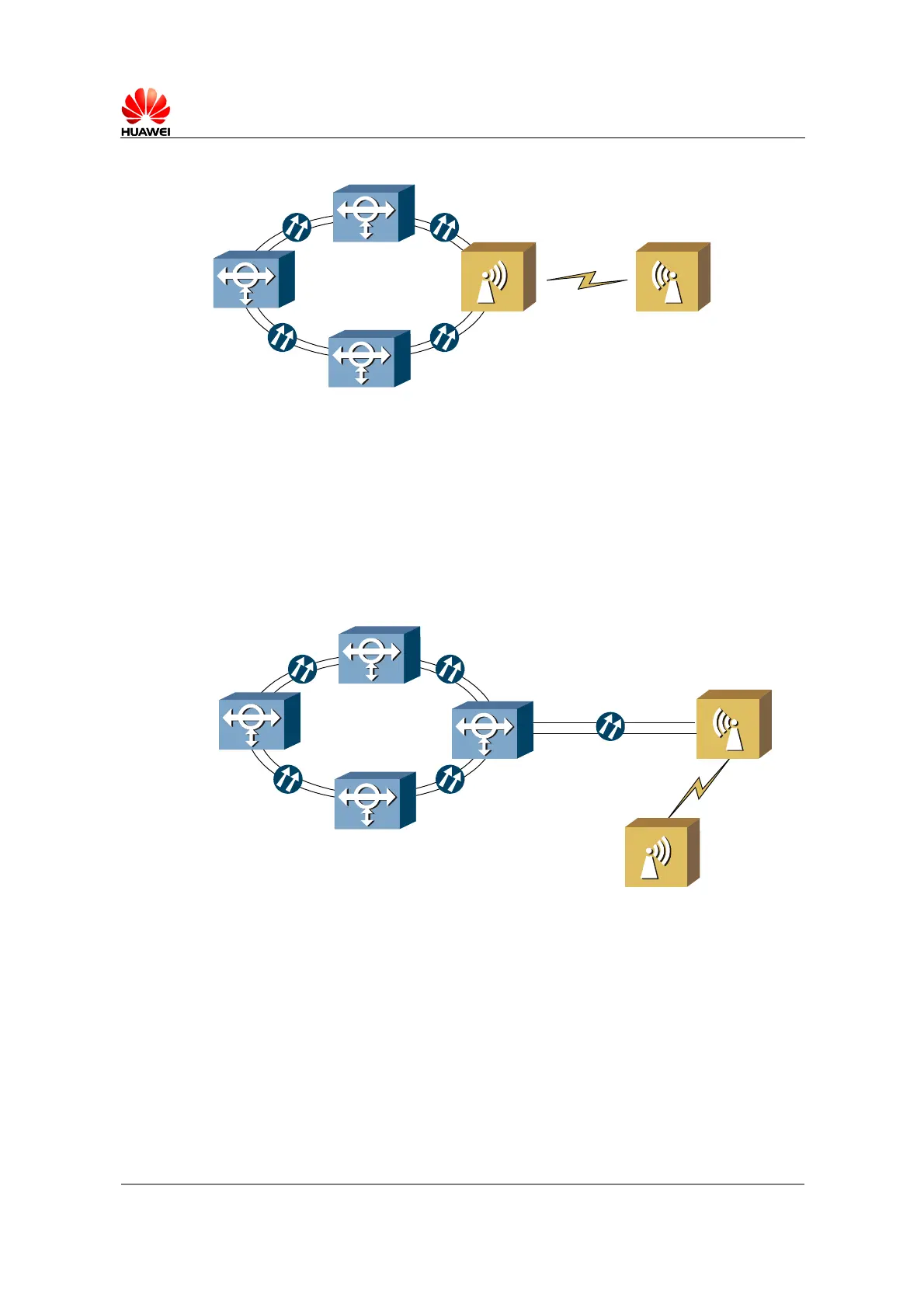

Figure 5-5 Fiber ring networking (microwave services directly accessed)
Figure 5-6 shows a network with a fiber ring and a microwave link indirectly connected
to the ring. In this example, optical transmission systems form an STM-4 ring. The ring
adopts the protection mechanism of a two fiber bidirectional multiplex section shared
protection ring. The microwave link is connected to the ring through an STM-1 optical
interface.
OptiX RTN 600
OptiX RTN 600
STM-4 MSP ring
STM-1 unprotected chain
ADM
ADM
ADM
ADM
Figure 5-6 Fiber ring networking (microwave services indirectly accessed)
5.5 Microwave Ring Networking
In this networking mode, the OptiX RTN 600 forms a microwave ring network.
Figure 5-7 shows an STM-1 microwave ring network. The ring adopts the SNCP
protection mechanism. The OptiX RTN 600 adopts 2+0 configuration.
