Quidway AR 28 Series Routers Installation Manual Chapter 2 System Specifications
Huawei Technologies Proprietary
2-4

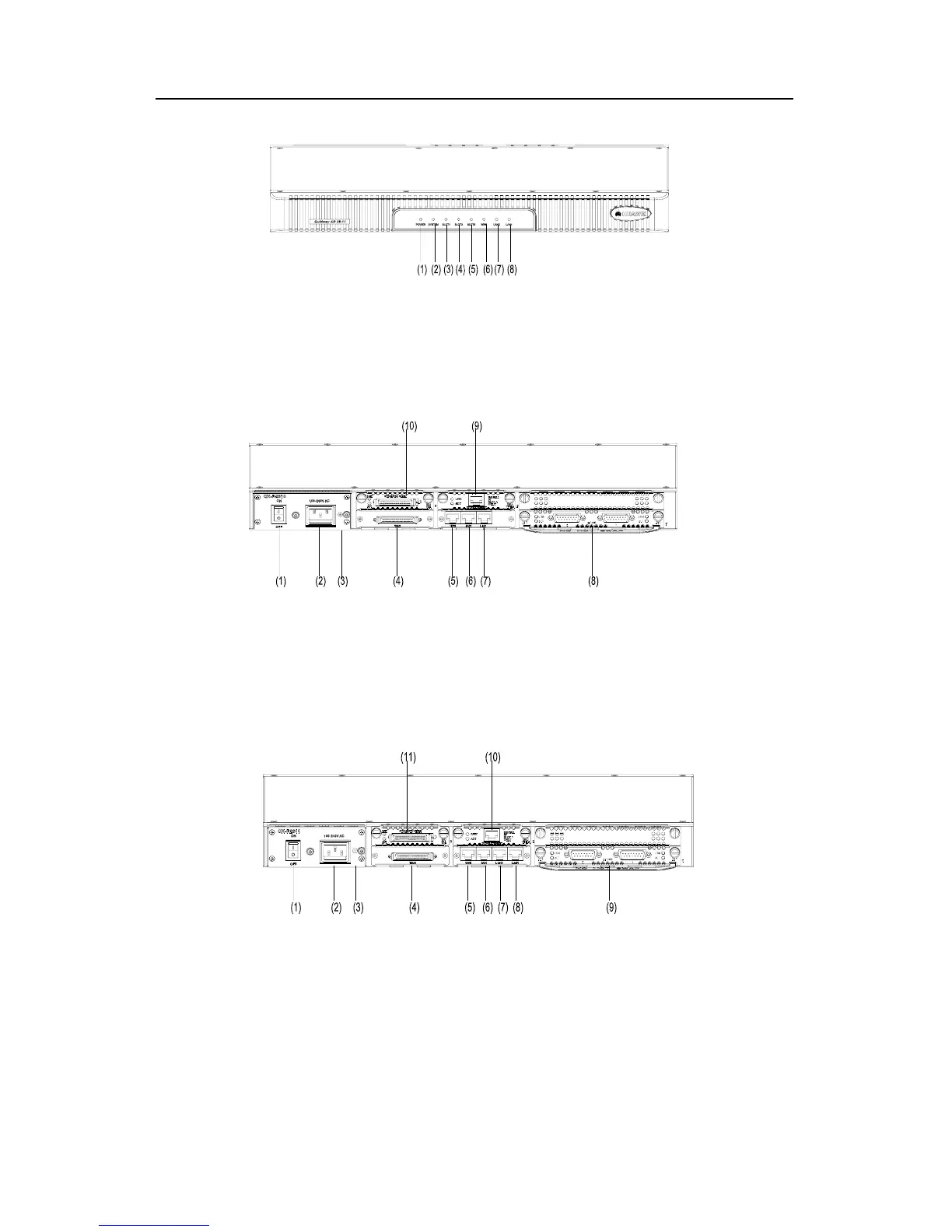

1) POWER 2) SYSTEM
3) SLOT1 4) SLOT2
5) SLOT3 6) WAN
7) LAN0 8) LAN1
Figure 2-4 Front view of the AR 28-11
1) Power switch 2) Power socket
3) Grounding screw 4) Fixed interface (WAN)
5) Console port (CON) 6) Auxiliary port (AUX)
7) Fixed Ethernet interface (LAN) 8) MIM slot 1
9) SIC slot 2 10) SIC slot 3
Figure 2-5 Rear view of the AR 28-10
1) Power switch 2) Power socket
3) Grounding screw 4) Fixed interface (WAN0)
5) Console port (CON) 6) Auxiliary port (AUX)
7) Fixed Ethernet port 0(LAN0) 8) Fixed Ethernet port 1 (LAN1)
9) MIM slot 1 10) SIC slot 2
11) SIC slot 3
Figure 2-6 Rear view of the AR 28-11
