Quidway AR 28 Series Routers Installation Manual Chapter 2 System Specifications
Huawei Technologies Proprietary
2-1
Chapter 2 System Specifications
2.1 AR 28-09
2.1.1 Appearance
1) SLOT0 2) SLOT1
3) SLOT2 4) SERIAL
5) ETHERNET 6)SYSTEM
7) POWER

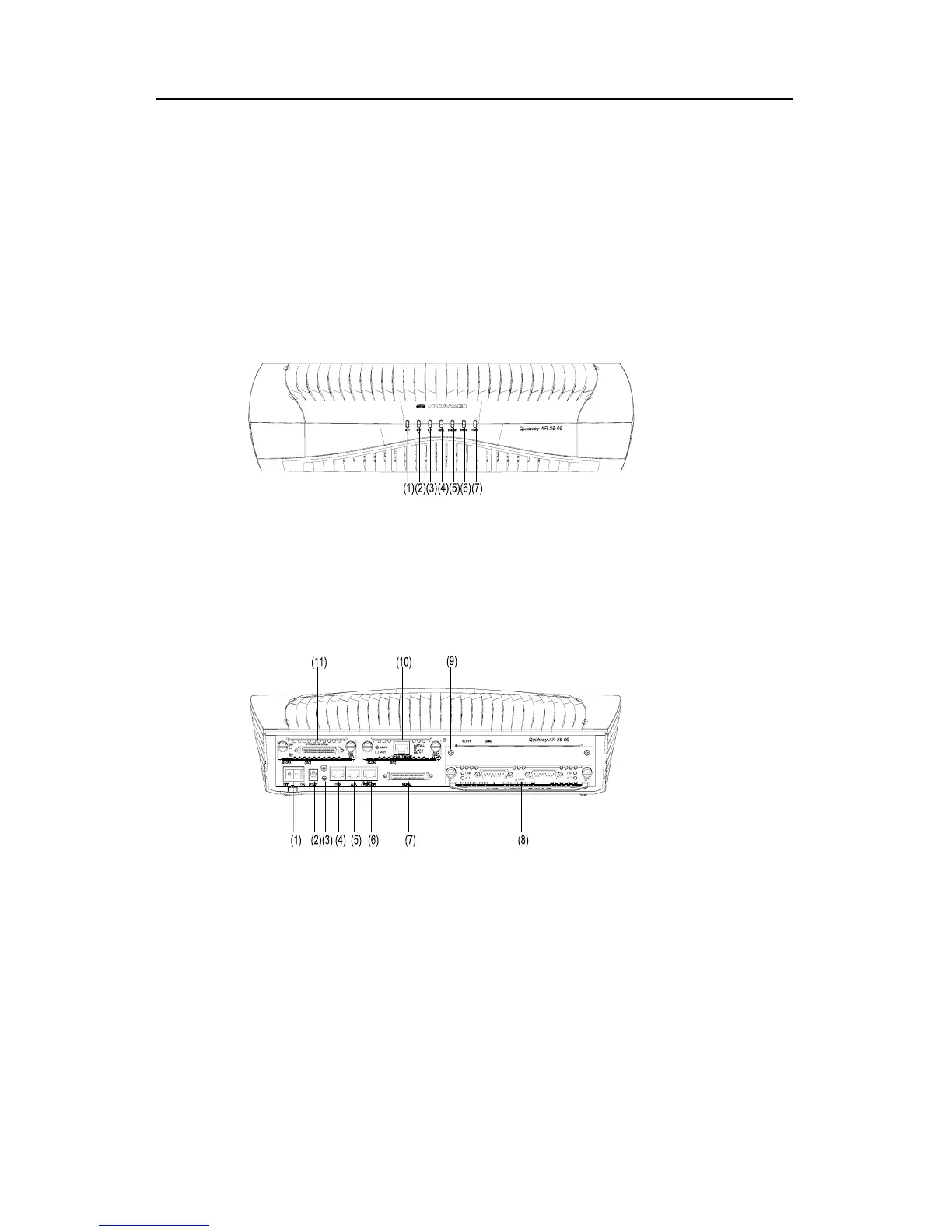

Figure 2-1 Front view of Quidway AR 28-09 Router
1) Power switch 2) Power socket
3) Grounding terminal 4) Console port (CON)
5) Auxiliary port (AUX) 6) 10/100 Mbps Ethernet interface (ETHERNET)
7) Synchronous/asynchronous serial interface (SERIAL)
8) SLOT1 (MIM slot) 9)) Fastening screw of the chassis
10) SLOT2 (SIC slot) 11) SLOT3 (SIC slot)
Figure 2-2 Rear view of Quidway AR 28-09 Router
2.1.2 Panel LEDs
Seven LEDs are provided on Quidway AR 28-09 Router. Their meaning is explained in
the following table:
