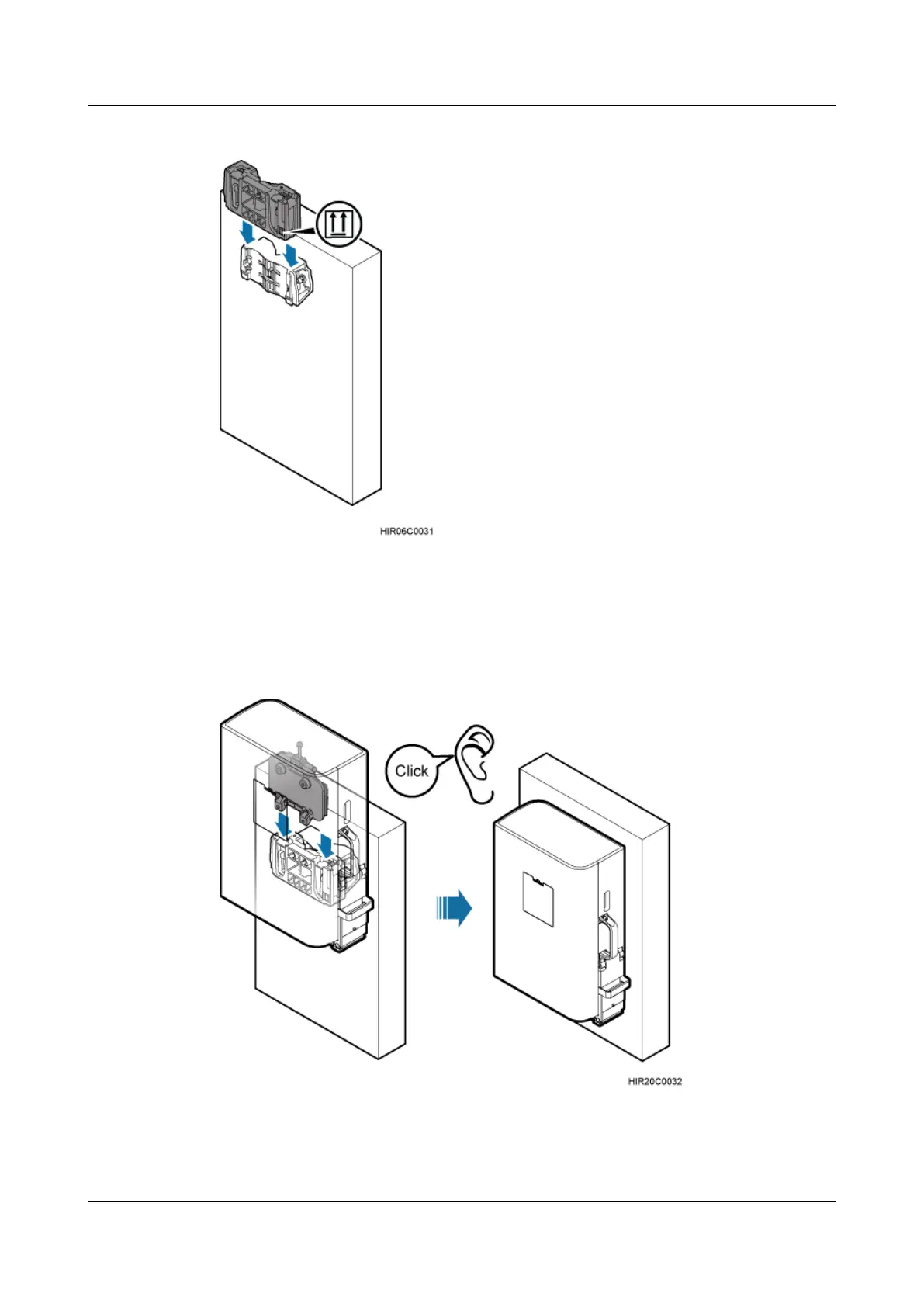

Figure 6-37 Installing the main mounting bracket
Step 6 Install the RRU on the main mounting bracket until the RRU snaps shut, as shown in Figure
6-38.
Figure 6-38 Installing the RRU
----End
