10.1 Adding an Easy Power Receptacle (Pressfit Type)
Connector to the RRU Power Cable on the RRU Side
This section describes the procedure for adding an easy power receptacle (pressfit type)
connector to the RRU power cable on the RRU side.
Procedure
Step 1 Figure 10-1 shows the cable diagram on labels.

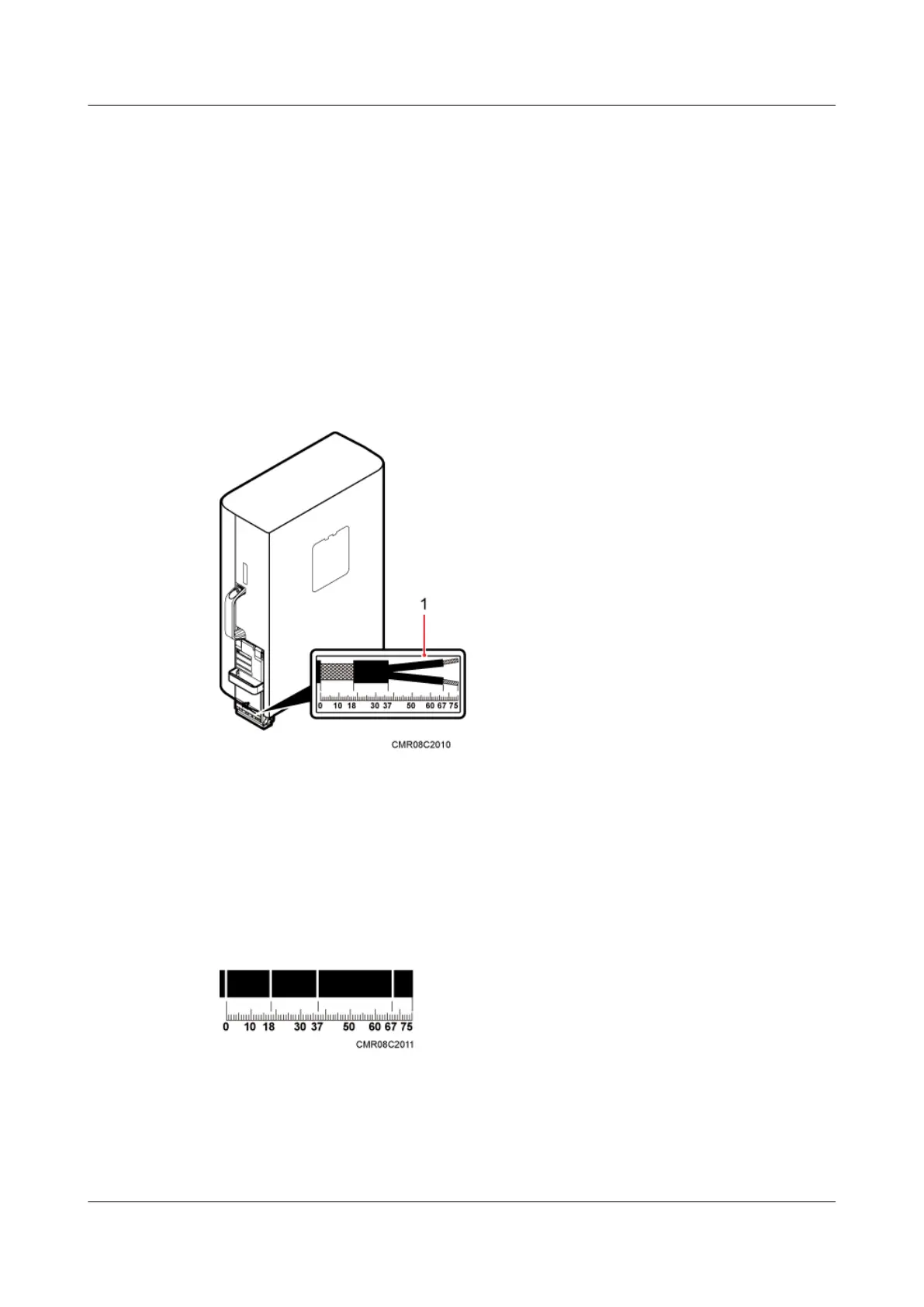

Figure 10-1 Cable diagram on labels
(1) Cable diagram on labels
Step 2 Determine the length of the power cable for different operations based on the labels, as shown
in Figure 10-2.
Figure 10-2 Determining the length of the power cable
Step 3 Strip the specified length of the sheath off the power cable, as shown in Figure 10-3.
RRU3232
Installation Guide 10 Appendix
