S Series Switches
iStack Technology White Paper
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2 Technology Description
2.1 Stack Physical Connection
As shown in Figure 2-1, switches in a stack can be connected in a chain or ring topology.
Table 2-1 compares the two topologies.
A stack usually uses a ring topology. In the ring topology, member switches are connected to
each other through stack cables. iStack blocks a stack link to prevent looping of data packets
on stack links.

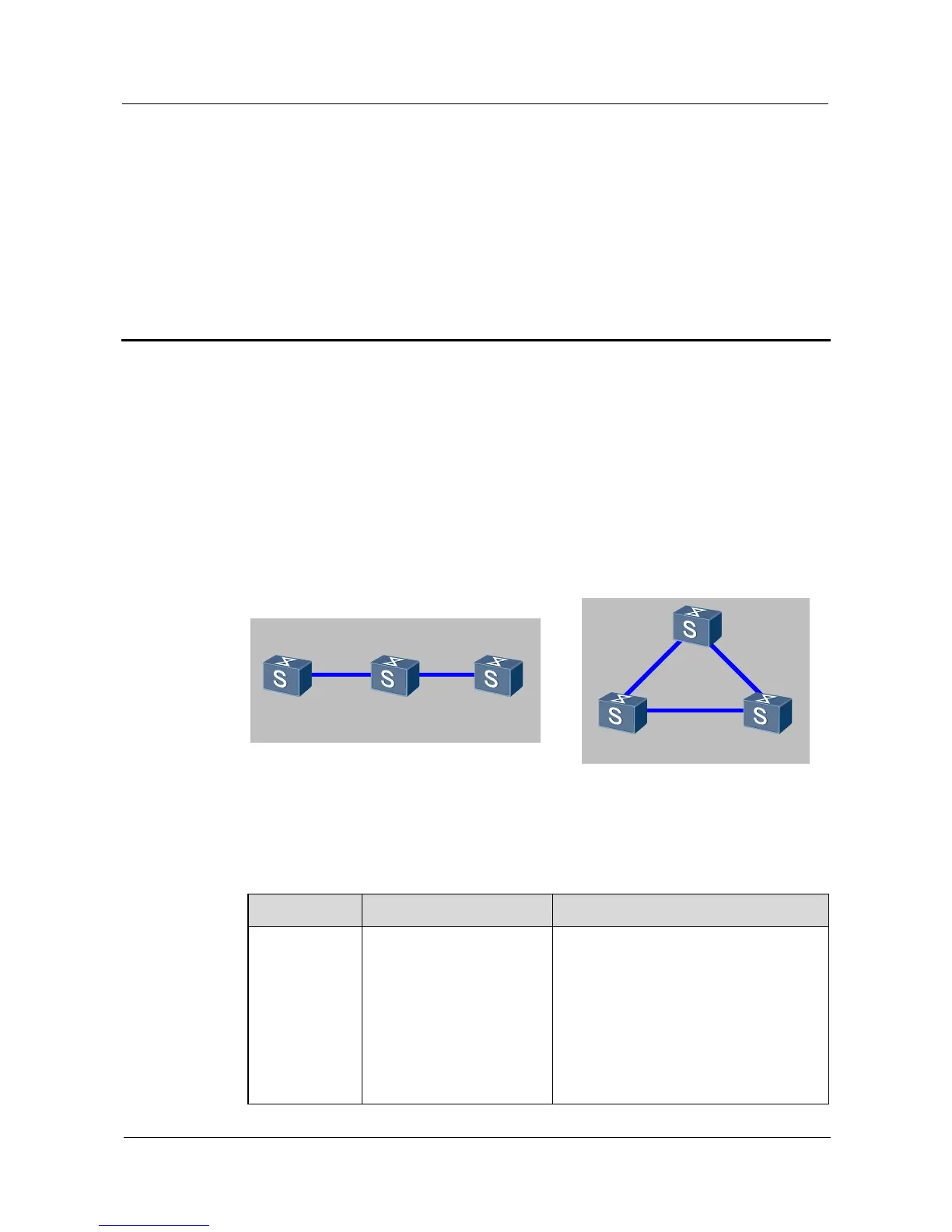

Figure 2-1 Stack connection topologies
Master SlaveStandby
Master
Standby Slave
Chain topology Ring topology
iStack
iStack
Table 2-1 Comparisons between two stack topologies
Provides high reliability.
When a stack link in a ring
topology fails, the ring
topology becomes a chain
topology.
Data can be forwarded
along the shortest path,
improving bandwidth usage
of stack links.
Applies to long-distance stacking because
the first and last devices do not need to be
physically connected.
