Huawei S Series White Paper

S Series Switches
iStack Technology White Paper
4 Application Scenarios
Issue 01 (2013-05-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
50

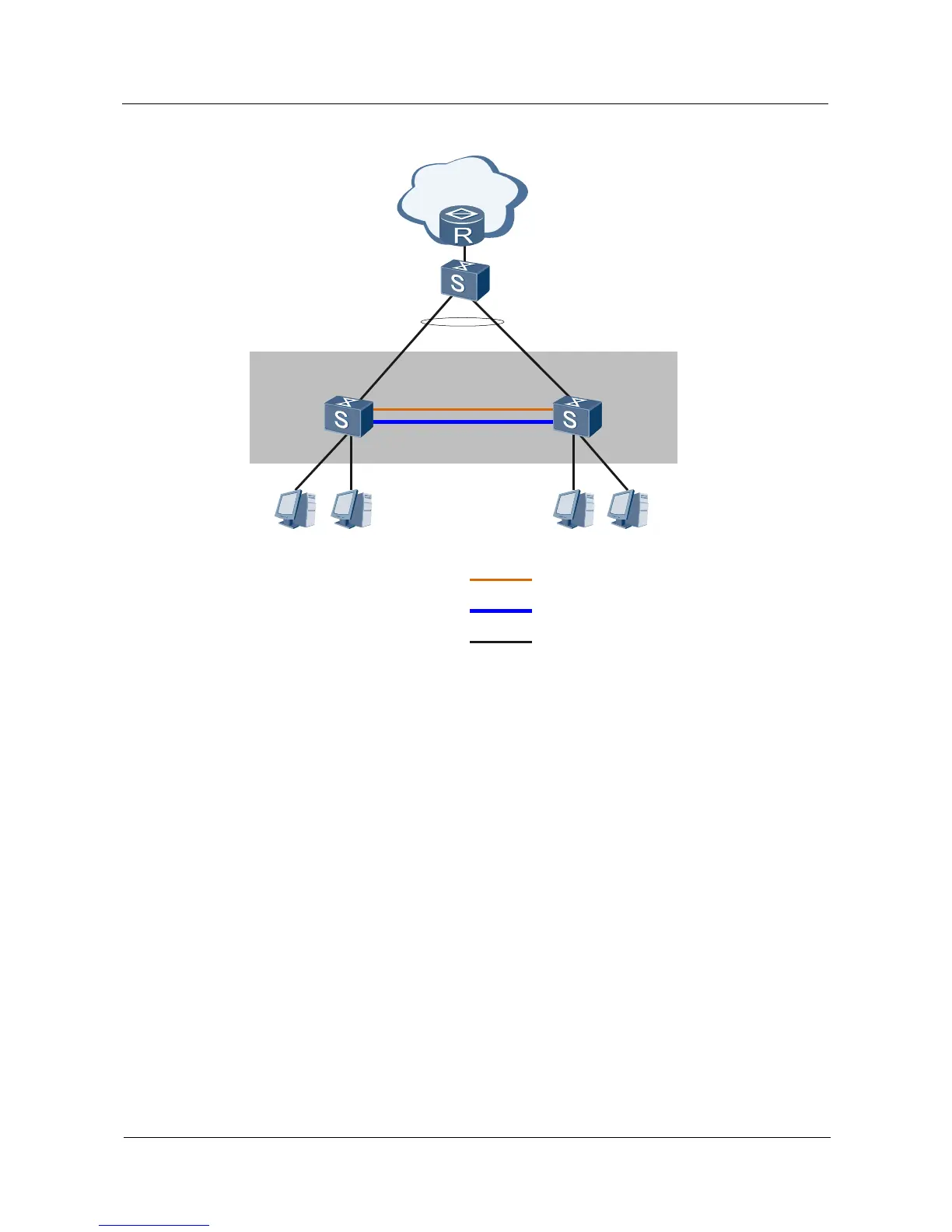

Figure 4-3 Networking diagram of MAD in direct mode
Network
iStack
SwitchA SwitchB
GE0/0/5 GE1/0/5
SwitchC
MAD Link
iStack Link
Common Link
Configuration Roadmap
The configuration roadmap is as follows:

Configure MAD in direct mode on specified interfaces.
Configuration Procedure
Step 1 Configure MAD on interfaces.
# Configure MAD in direct mode on GigabitEthernet0/0/5.
<HUAWEI> system-view
[HUAWEI] interface gigabitethernet 0/0/5
[HUAWEI-GigabitEthernet0/0/5] mad detect mode direct
Warning: This command will block the port, and no other configuration running on
this port is recommended. Continue?[Y/N]:y
# Configure MAD in direct mode on GigabitEthernet1/0/5.
<HUAWEI> system-view
[HUAWEI] interface gigabitethernet 1/0/5
[HUAWEI-GigabitEthernet1/0/5] mad detect mode direct
