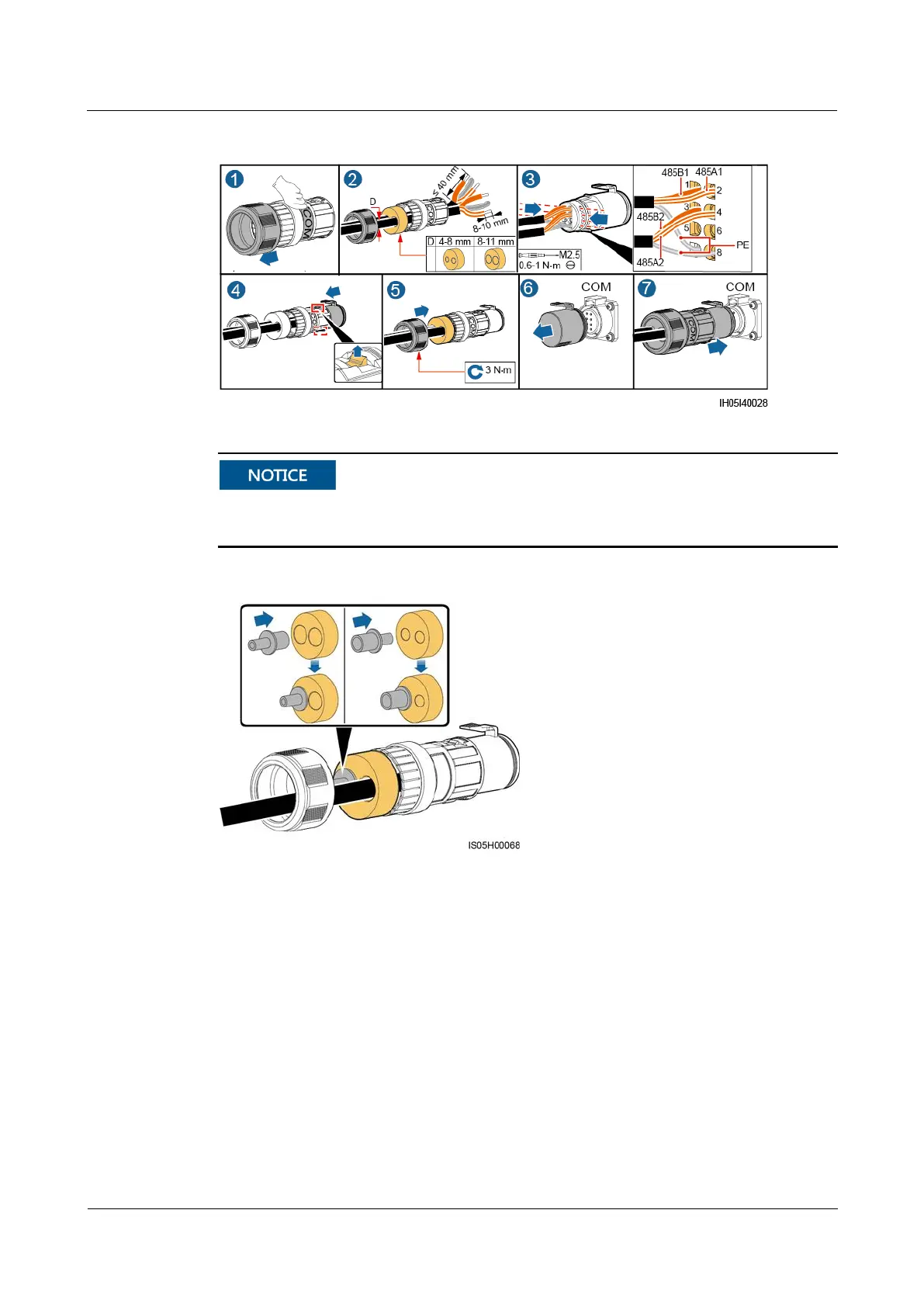

Figure 5-16 Connecting RS485 communications cables (4–8 mm two-hole rubber plug)

Block unused cable holes using plugs and tighten cable glands.

If two signal cables are required, ensure that they have the same outer diameter.
Figure 5-17 Blocking a cable hole (4–8 mm two-hole rubber plug)
----End
