Huawei SUN2000-36KTL Quick Guide

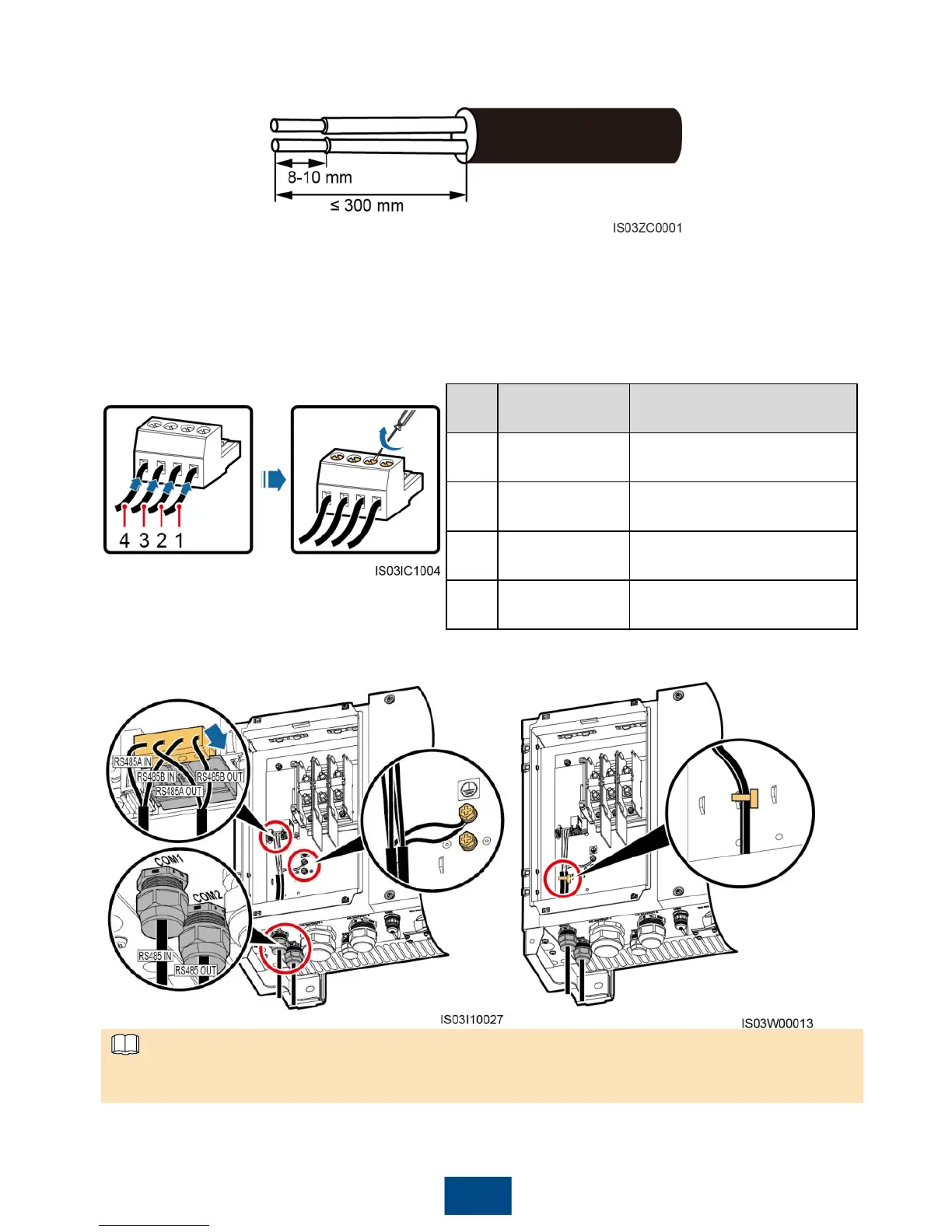

1. Remove an appropriate length of the jacket and core wire insulation layer from the
communications cable using a wire stripper.
2. Remove the locking caps from the COM1 and COM2 connectors at the SUN2000 bottom and
then remove the plugs from the caps.
3. Route the communications cables through the locking caps, and then the COM1 (RS485 IN)
and COM2 (RS485 OUT) connectors at the SUN2000 bottom.
4. Remove the terminal base from the terminal block, and connect the communications cables to
the terminal base.
No.
Port Definition
Description
1
RS485A IN
RS485A, RS485 differential
signal +
2
RS485A OUT
RS485A, RS485 differential
signal +
3
RS485B IN
RS485B, RS485 differential
signal
–
4
RS485B OUT
RS485B, RS485 differential
signal
–
12
5. Install the terminal base on the terminal block,
and connect the shield layer to the ground point.
6. Bind the communications cables.
7. Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5 N·m,
and seal the waterproof connector.
When connecting the shielded cables, choose whether to crimp the OT terminal based on site
requirements.
NOTE

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
