Huawei SUN2000-36KTL Quick Guide

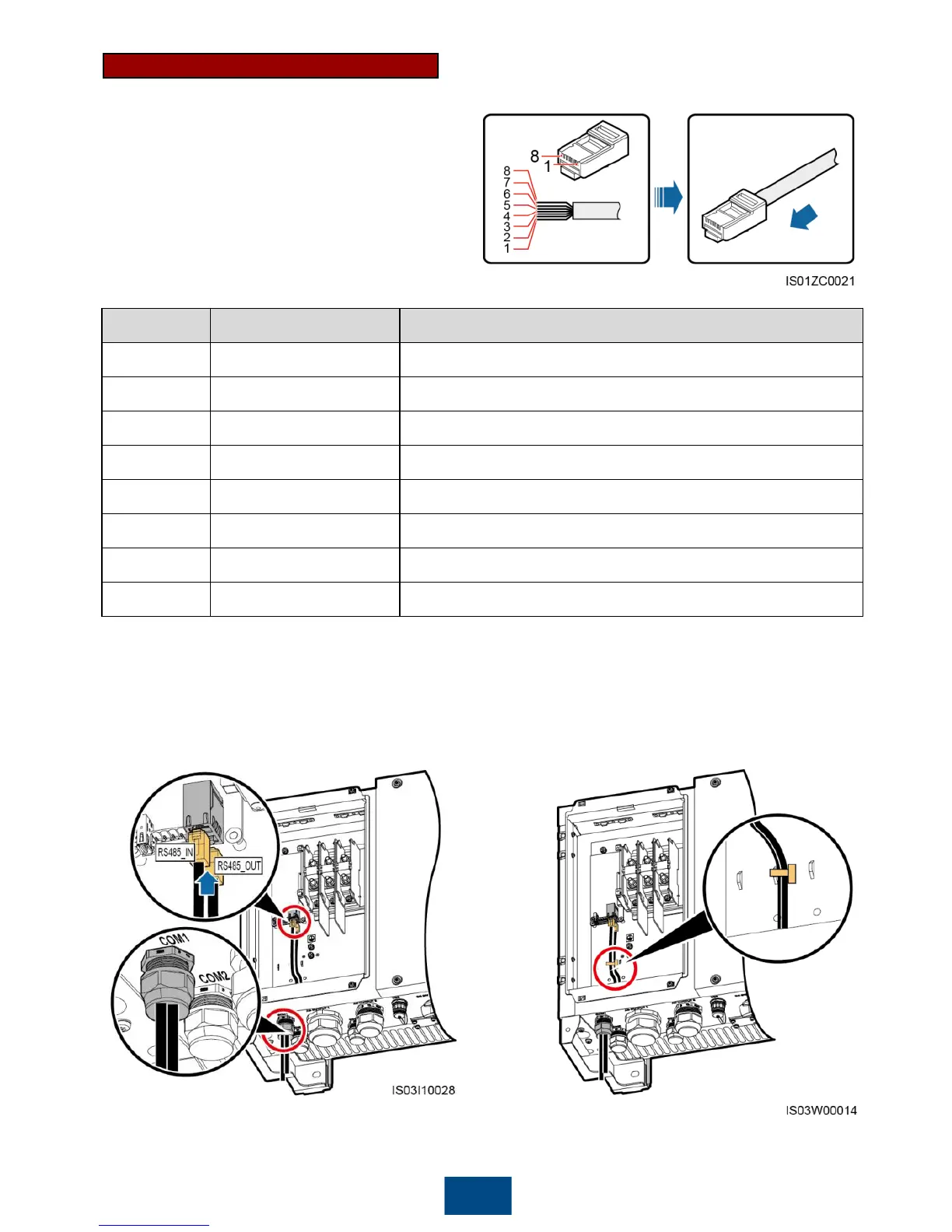

1. Insert the wires of the network cable to the
RJ45 connector in sequence.
RJ45 network port connection
You are recommended to use a CAT 5E
outdoor shielded network cable with an outer
diameter less than 9 mm and internal
resistance not greater than 1.5 ohms/10 m, as
well as a shielded RJ45 connector.
2. Crimp the RJ45 connector using a
crimping tool.
No.
Color
Pin Definition
1
White
-and-orange
RS485A, RS485 differential signal +
2
Orange
RS485B, RS485 differential signal
–
3
White
-and-green
N/A
4
Blue
RS485A, RS485 differential signal +
5
White
-and-blue
RS485B, RS485 differential signal
–
6
Green
N/A
7
White
-and-brown
N/A
8
Brown
N/A
13
5. Insert the RJ45 connector into the RJ45 network port
in the maintenance compartment of the SUN2000.
3. Remove the locking cap from the COM1 connector at the SUN2000 bottom and then remove
the plug from the cap.
4. Route the communications cables through the locking cap and then the COM1 connector at the
SUN2000 bottom.
6. Bind the communications cables.
7. Use a torque wrench with an open end of 33 mm to tighten the locking cap to a torque of 7.5 N·m,
and seal the waterproof connector.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
