Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
Network Application
The SUN2000 applies to grid-tied PV power systems for commercial rooftops and large
power stations. Typically, a grid-tied PV power system consists of PV strings, grid-tied
inverters, AC distribution units (ACDUs), and isolation transformer, as shown in Figure 2-2.

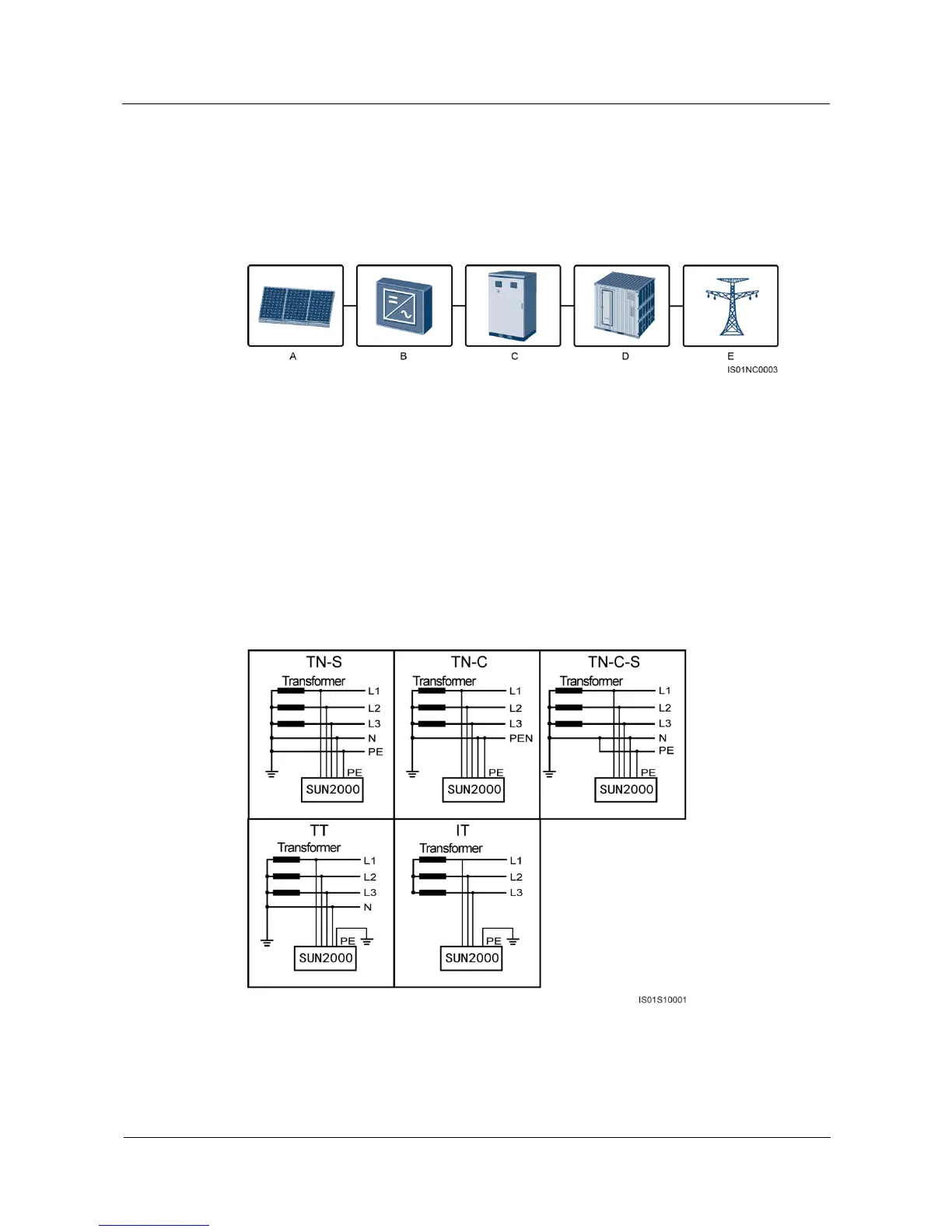

Figure 2-2 Network application
(A) PV string
(B) SUN2000
(C) ACDU
(D) Isolation transformer
(E) Power grid
Supported Power Grids
The SUN2000-33KTL-A/36KTL supports the following power grid modes: TN-S, TN-C,
TN-C-S, TT, and IT. The SUN2000-42KTL supports only IT grid mode.
Figure 2-3 Power grid modes

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
