Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
No.
Component
Silk Screen
6
Waterproof cable connectors (inner
diameter: 14–18 mm)
COM1, COM2, COM3
7
DC input terminals (controlled by
DC SWITCH 1)
+/–
8
DC input terminals (controlled by
DC SWITCH 2)
+/–

Waterproof cable connector is abbreviated as waterproof connector in the following text.

Use the USB port only during maintenance (such as power-on setting, upgrade, and data export).
Ensure that the USB cover is tightened when the USB port is not in use.

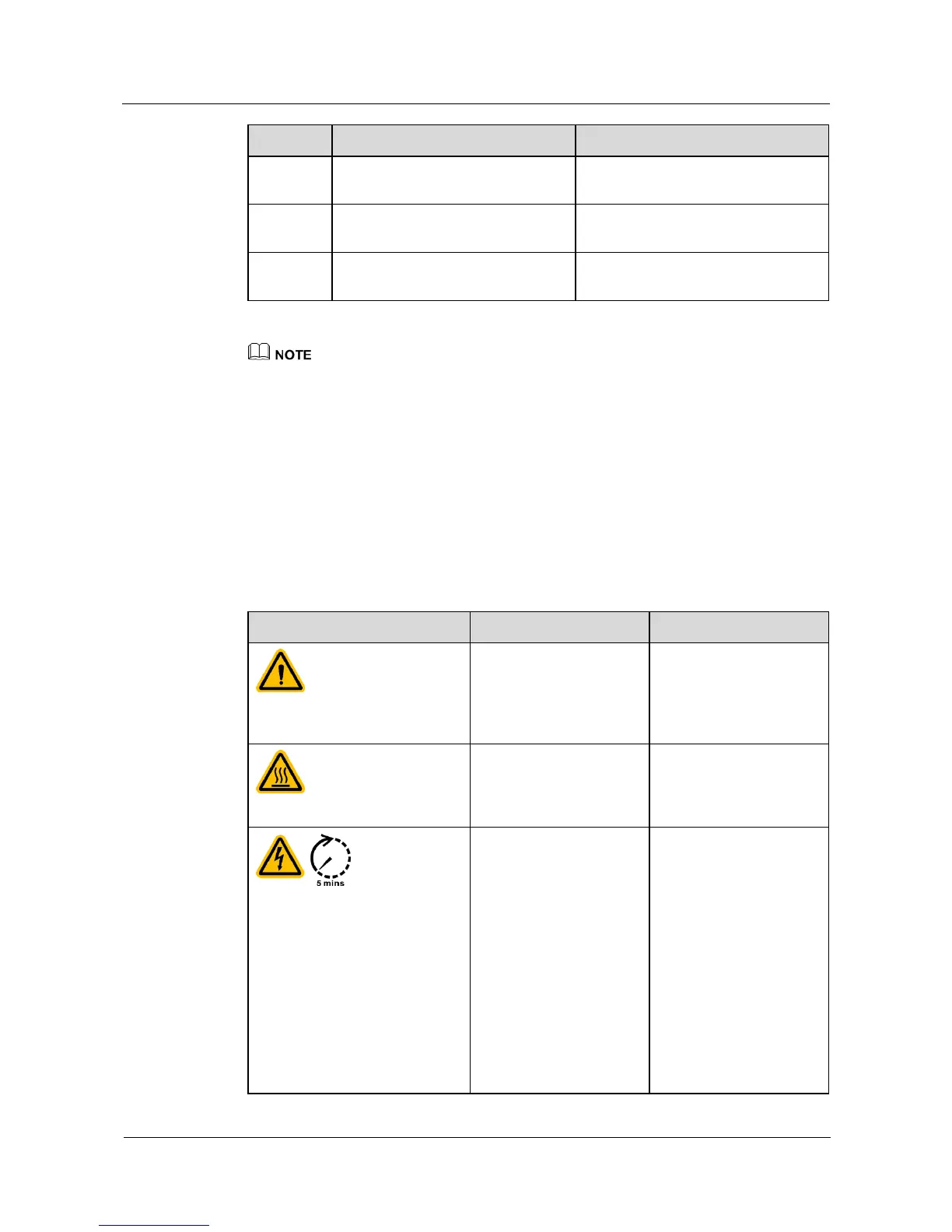

2.3 Label Description
Symbols
Table 2-3 describes the labels on the SUN2000 enclosure and their meanings.
Table 2-3 Label description
Symbol
Name
Meaning
Running warning
Potential hazards exist
after the SUN2000 is
powered on. Take
protective measures when
operating the SUN2000.
Burn warning
Do not touch a running
SUN2000 because it
generates high
temperatures on the shell.
Delay discharge

High voltage exists
after the SUN2000 is
powered on. Only
qualified and trained
electrical technicians
are allowed to perform
operations on the
SUN2000.

Residual voltage exists
after the SUN2000 is
powered off. It takes 5
minutes for the
SUN2000 to discharge
to the safe voltage.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
