4.4.2 Moving the Inverter
For details, see 4.3.2 Moving the Inverter.
4.4.3 Installing the Mounting Bracket
Context

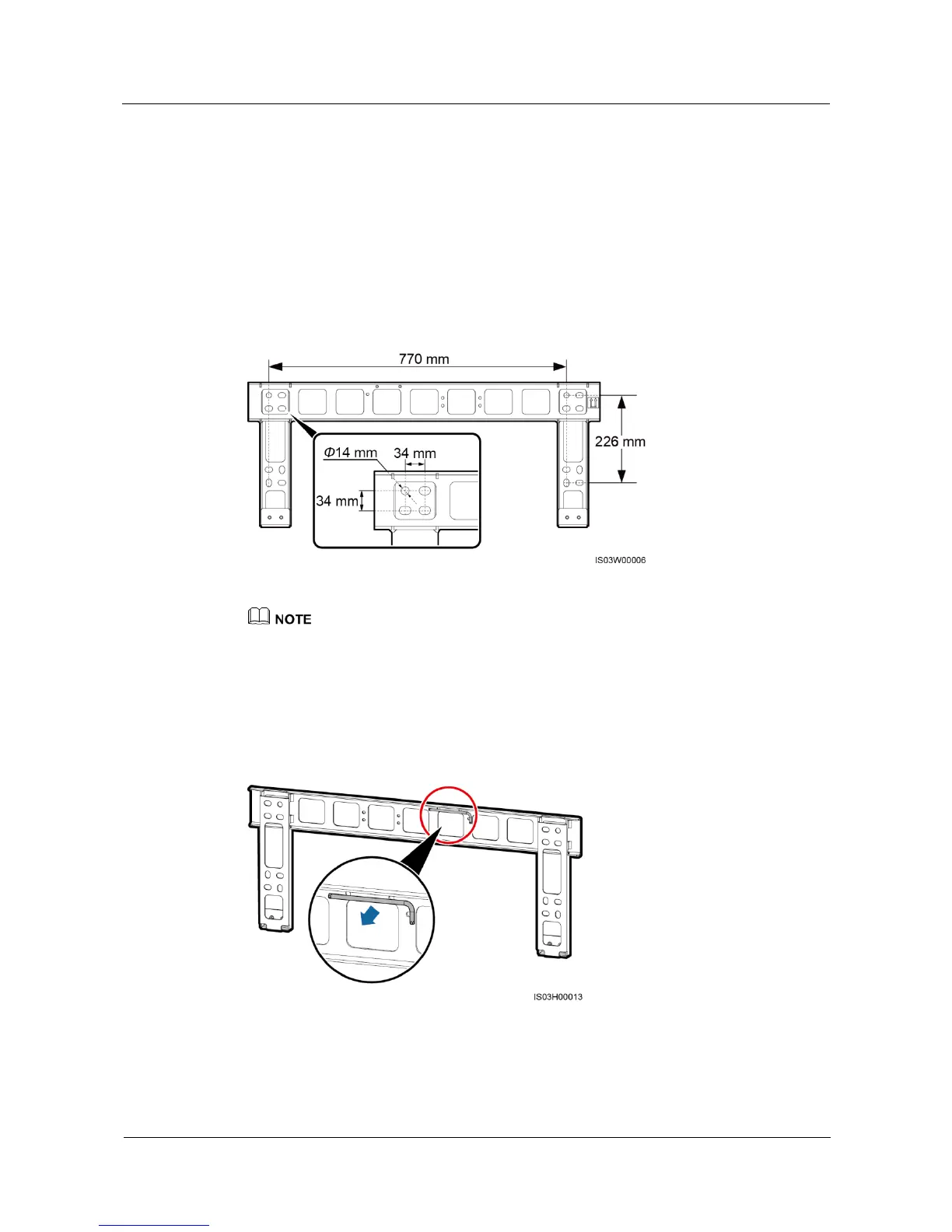

Figure 4-22 shows the SUN2000 mounting bracket dimensions.
Figure 4-22 Mounting bracket dimensions
The SUN2000 mounting bracket has 16 tapped holes in four groups. Mark any hole in each group based
on site requirements and mark four holes in total. Two round holes are preferred.
Procedure
Step 1 Remove the security torx wrench from the mounting bracket and set it aside.
Figure 4-23 Removing a security torx wrench
Step 2 Determine the positions for drilling holes using the mounting bracket. Level the hole positions
using a level, and mark the hole positions using a marker.
