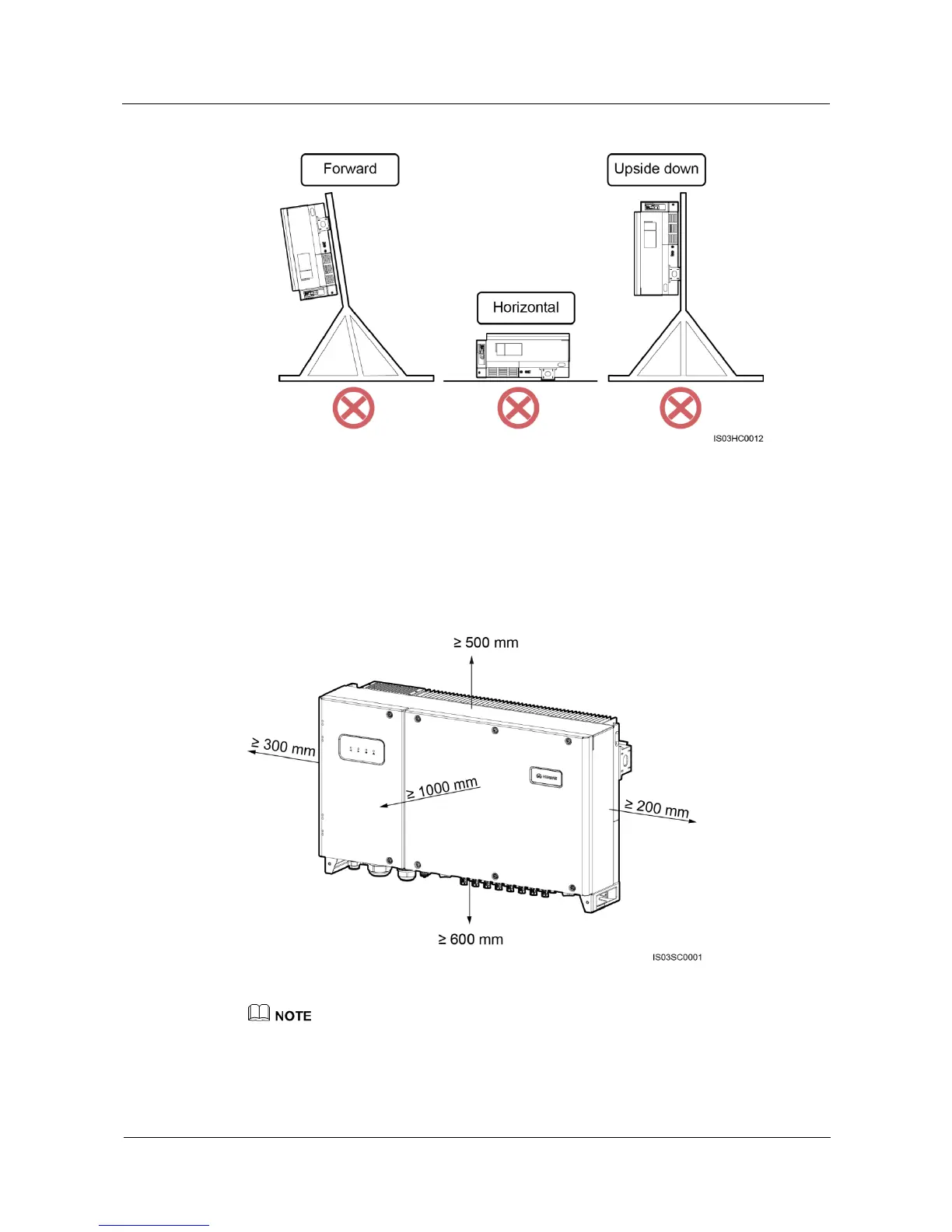

Figure 4-20 Incorrect installation angles
Installation Space Requirements
The SUN2000 dimensions (W x H x D, including the mounting bracket) are 930 mm x 550
mm x 283 mm. Reserve enough clearance around the SUN2000 to ensure sufficient space for
installation and heat dissipation, as shown in Figure 4-21.
Figure 4-21 Installation space
For ease of installing the SUN2000 on the mounting bracket, connecting cables to the bottom of the
SUN2000, and maintaining the SUN2000 in future, it is recommended that the bottom clearance be
greater than or equal to 600 mm and less than or equal to 730 mm. If you have any questions about the
distance, consult the local technical support engineers.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
