Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
4 System Installation
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18

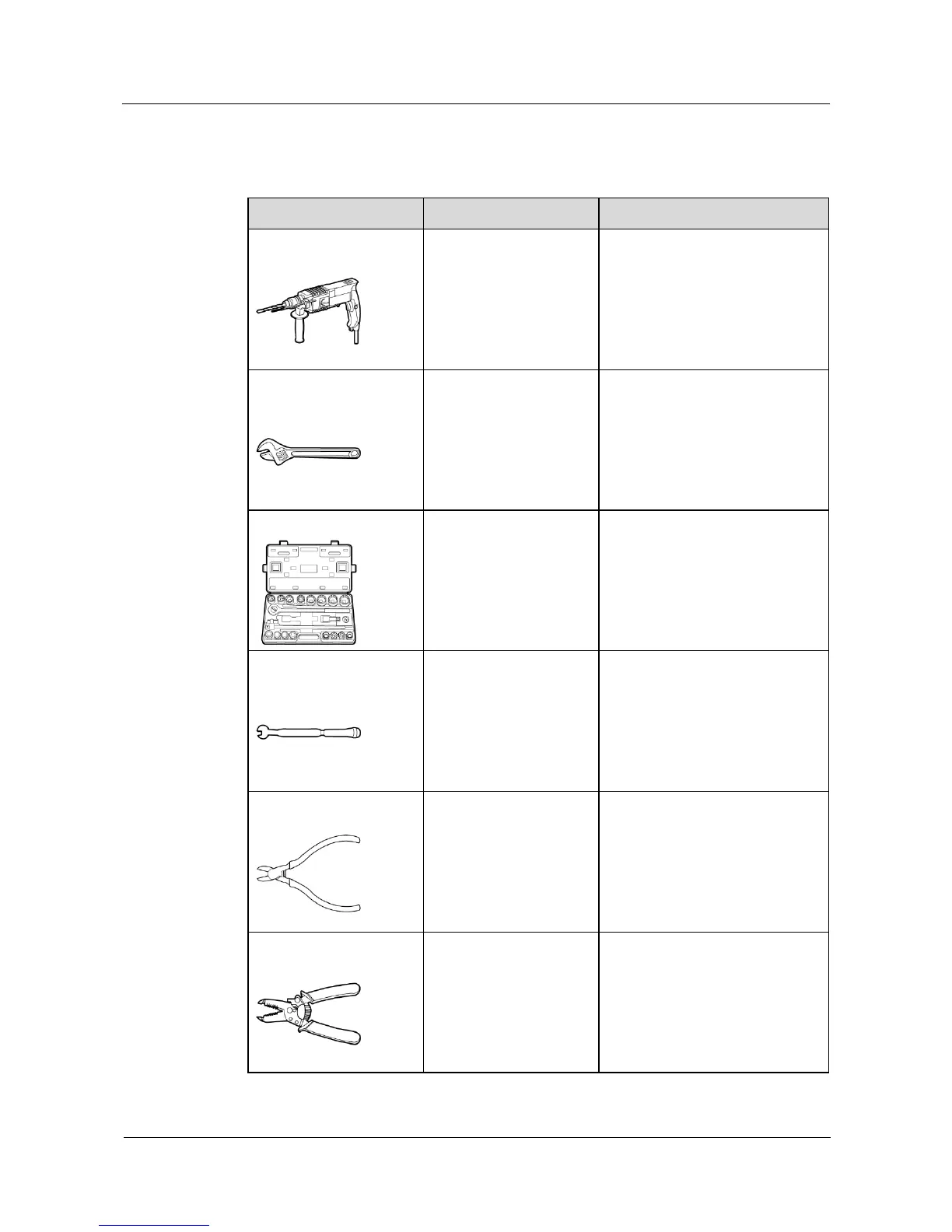

4.2 Tools
Prepare tools required for installation and cable connections.
Tool
Model
Function
Hammer drill
Drill bit: Φ14 mm and
Φ16 mm

Drill bit: Φ14 mm, used for
drilling holes in the support.

Drill bit: Φ16 mm, used for
drilling holes in the wall.
Adjustable wrench

With a length of 200
mm

With an open end of
24 mm
Secures bolts.
Socket wrench
N/A
Secures bolts and AC output
terminals.
Torque wrench
With an open end of 18
mm, 33 mm, 52 mm, or
65 mm
Secures bolts and locking caps.
Diagonal pliers
N/A
Cut cable ties.
Wire stripper
N/A
Peels cable jackets.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
