Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
4 System Installation
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
19

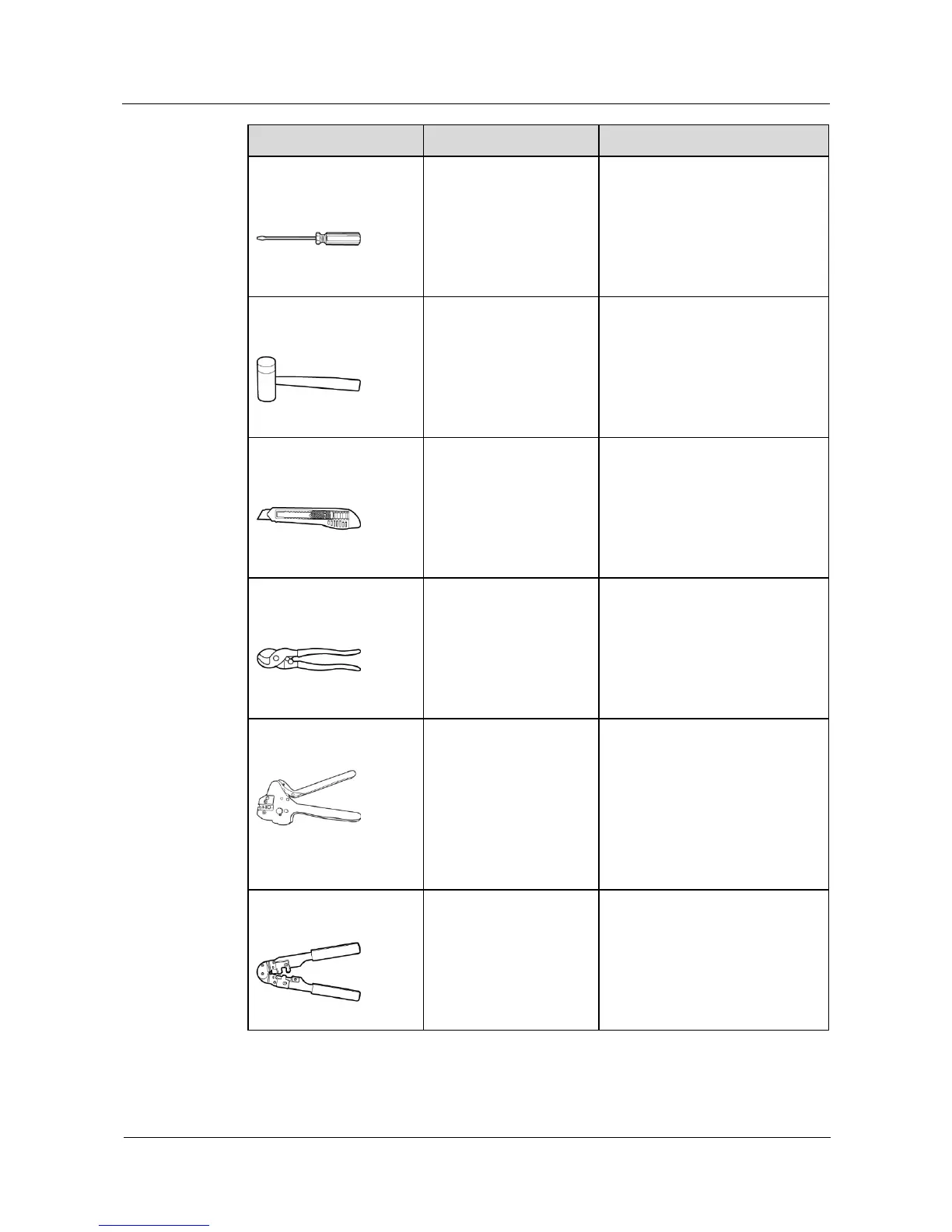

Tool
Model
Function
Flat-head screwdriver
Head: 0.6 mm x 3.5 mm
Connects cables to terminal bases.
Rubber mallet
N/A
Hammers expansion bolts into
holes.
Utility knife
N/A
Removes packages.
Cable cutter
N/A
Cuts power cables.
Crimping tool
Model: H4TC0001 or
H4TC0002
Manufacturer: Amphenol
Crimps metal contacts when
preparing DC input power cables.
NOTE

H4TC0001 (Amphenol) is used to
crimp metal cold forming
contacts.

H4TC0002 (Amphenol) is used to
crimp metal stamping forming
contacts.
RJ45 crimping tool
N/A
Prepares RJ45 connectors for
communications cables.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
