Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
4 System Installation
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
37

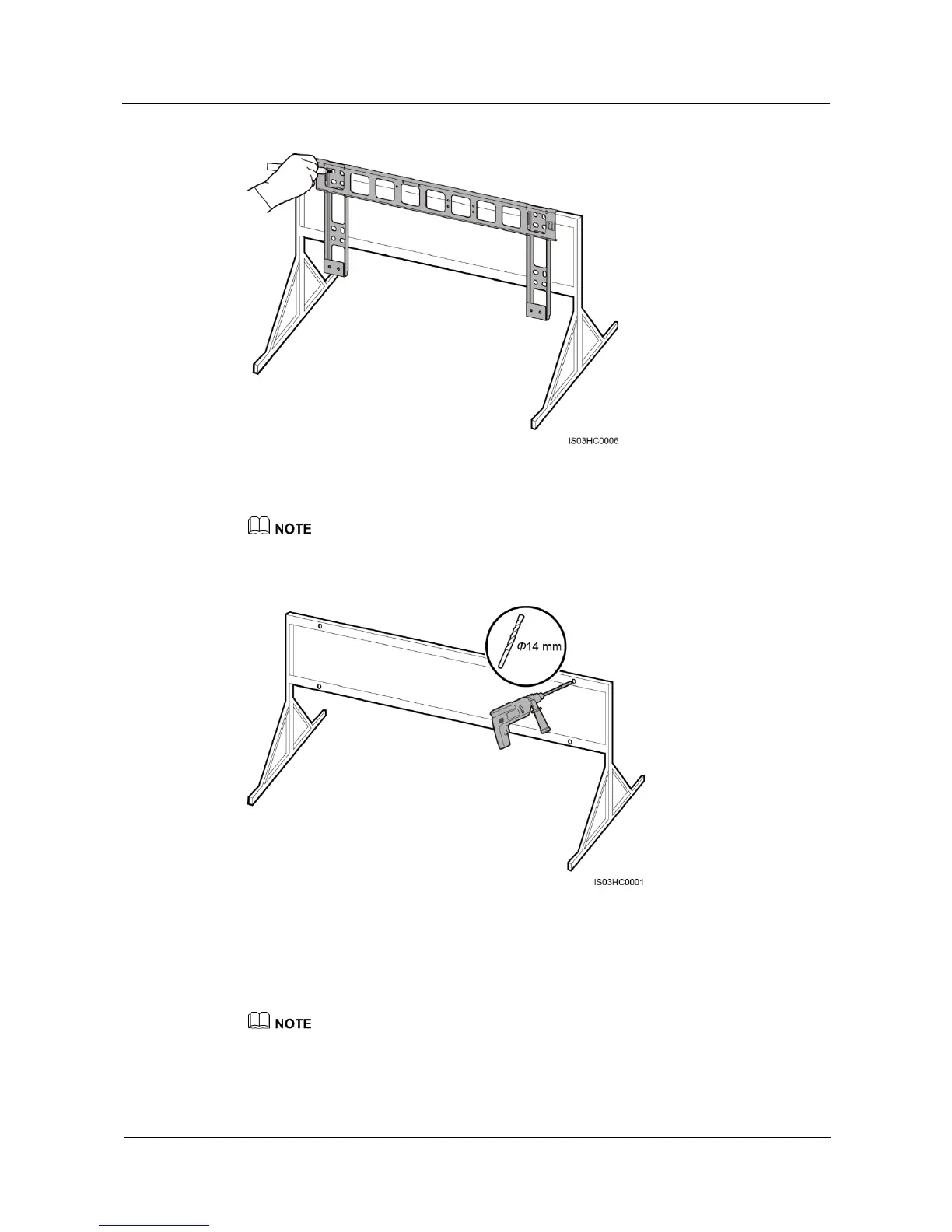

Figure 4-24 Determining hole positions
Step 3 Drill holes using a hammer drill.
You are advised to apply anti-rust paint on the hole positions for protection.
Figure 4-25 Drilling holes
Step 4 Align the mounting bracket with the hole positions, insert bolt assemblies (flat washers,
spring washers, and M12x40 bolts) into the holes through the mounting bracket, secure them
using the shipped stainless steel nuts and flat washers, and tighten the bolts to a torque of 45
N·m using an 18 mm socket wrench.
The SUN2000 is delivered with M12x40 bolt assemblies. If the screw length does not meet the
installation requirements, prepare M12 bolt assemblies by yourself and use them together with the
delivered M12 nuts.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
