Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9

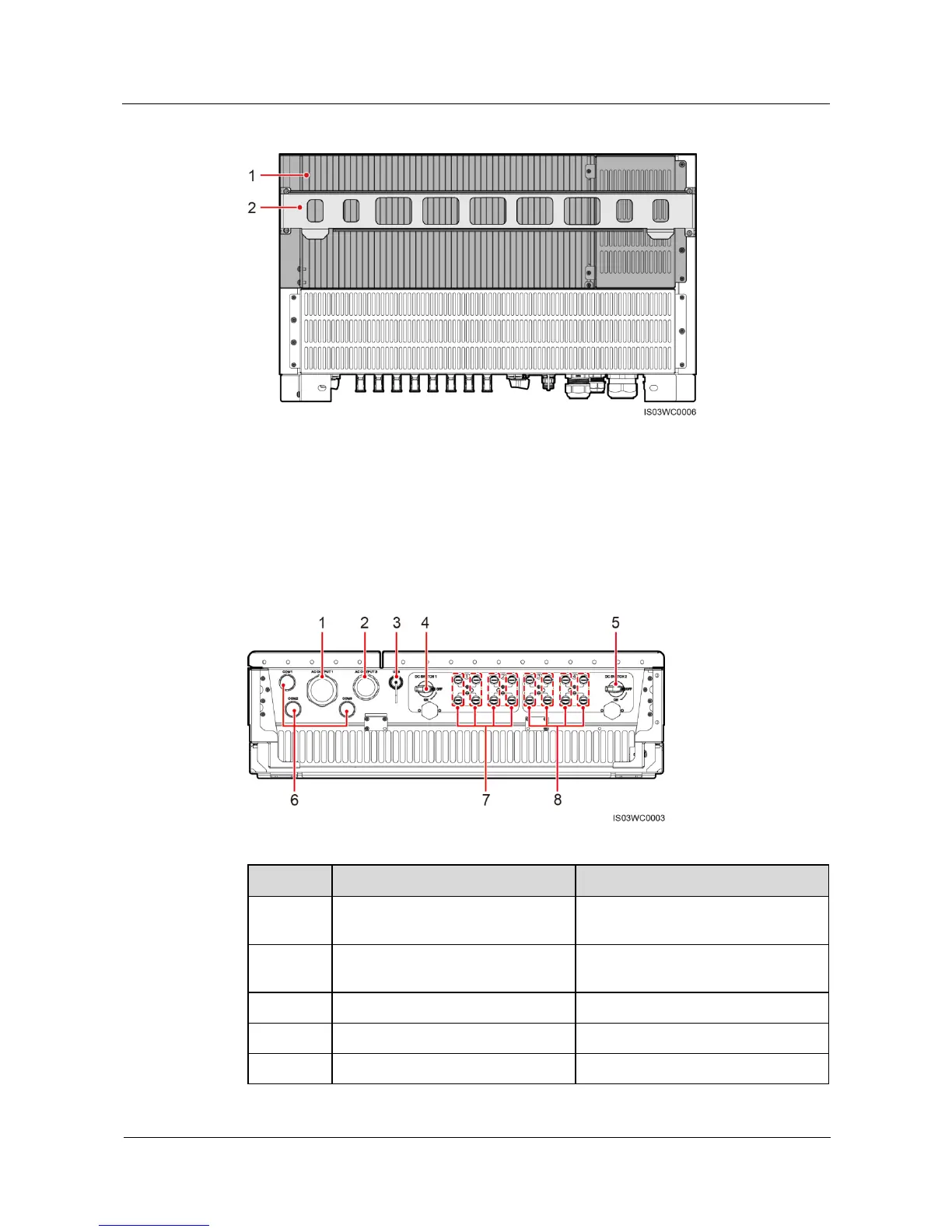

Figure 2-6 SUN2000 rear view
(1) Heat sink
(2) Mounting plate
SUN2000 bottom view
Figure 2-7 shows the SUN2000 bottom view.
Figure 2-7 SUN2000 bottom view
No.
Component
Silk Screen
1
Waterproof cable connector (inner
diameter: 18–44 mm)
AC OUTPUT 1
2
Waterproof cable connector (inner
diameter: 24–32 mm)
AC OUTPUT 2
3
USB port
USB
4
DC switch 1
DC SWITCH 1
5
DC switch 2
DC SWITCH 2

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
