SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
2 Overview
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14

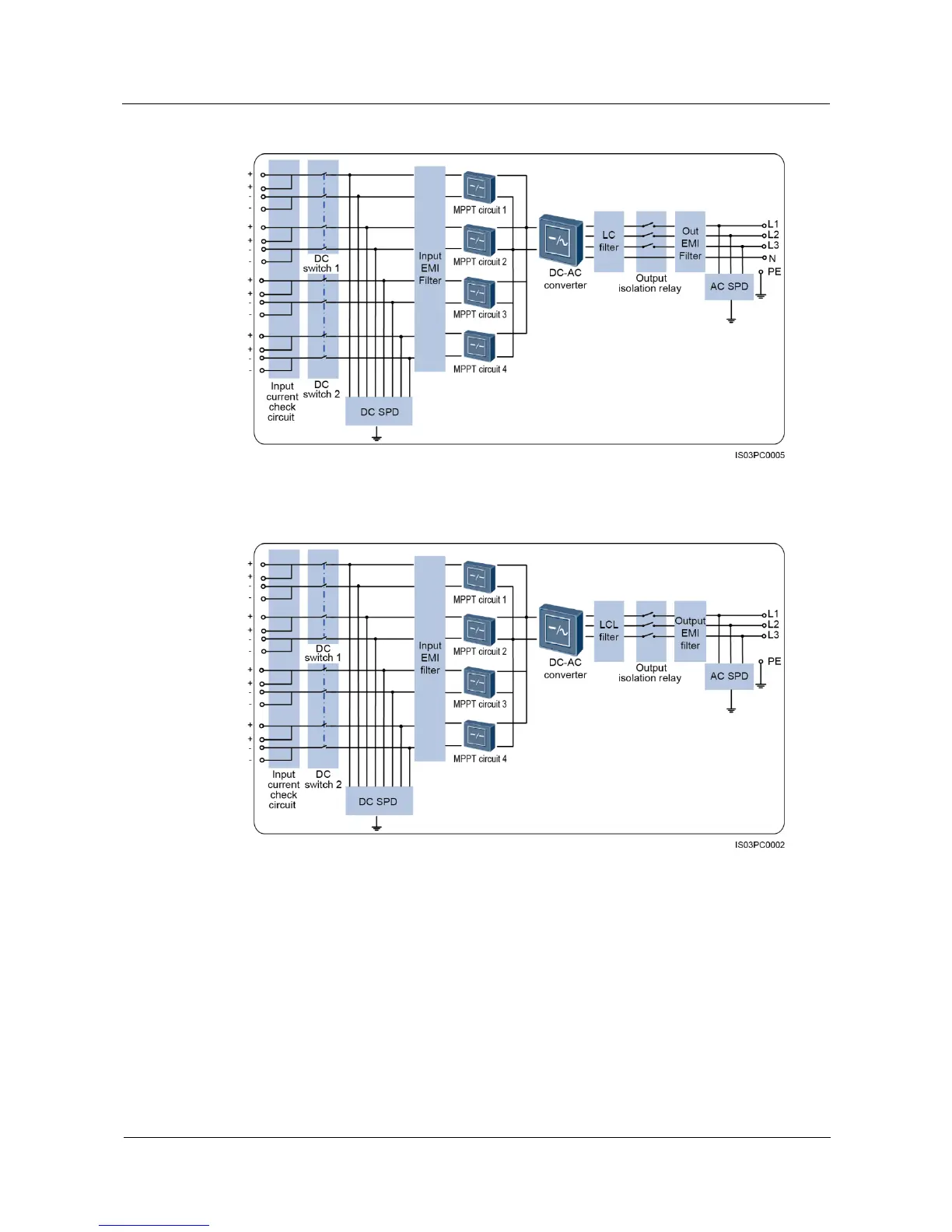

Figure 2-10 Conceptual diagram for the SUN2000-33KTL-A/36KTL
Figure 2-11 Conceptual diagram for the SUN2000-42KTL
Working Modes
The SUN2000 can work in standby, operating, or shutdown mode. Figure 2-12 shows the
relationship between the three working modes.
