Huawei SUN2000-36KTL User Manual

SUN2000-(33KTL-A, 36KTL, 42KTL)
User Manual
4 System Installation
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
28
Procedure

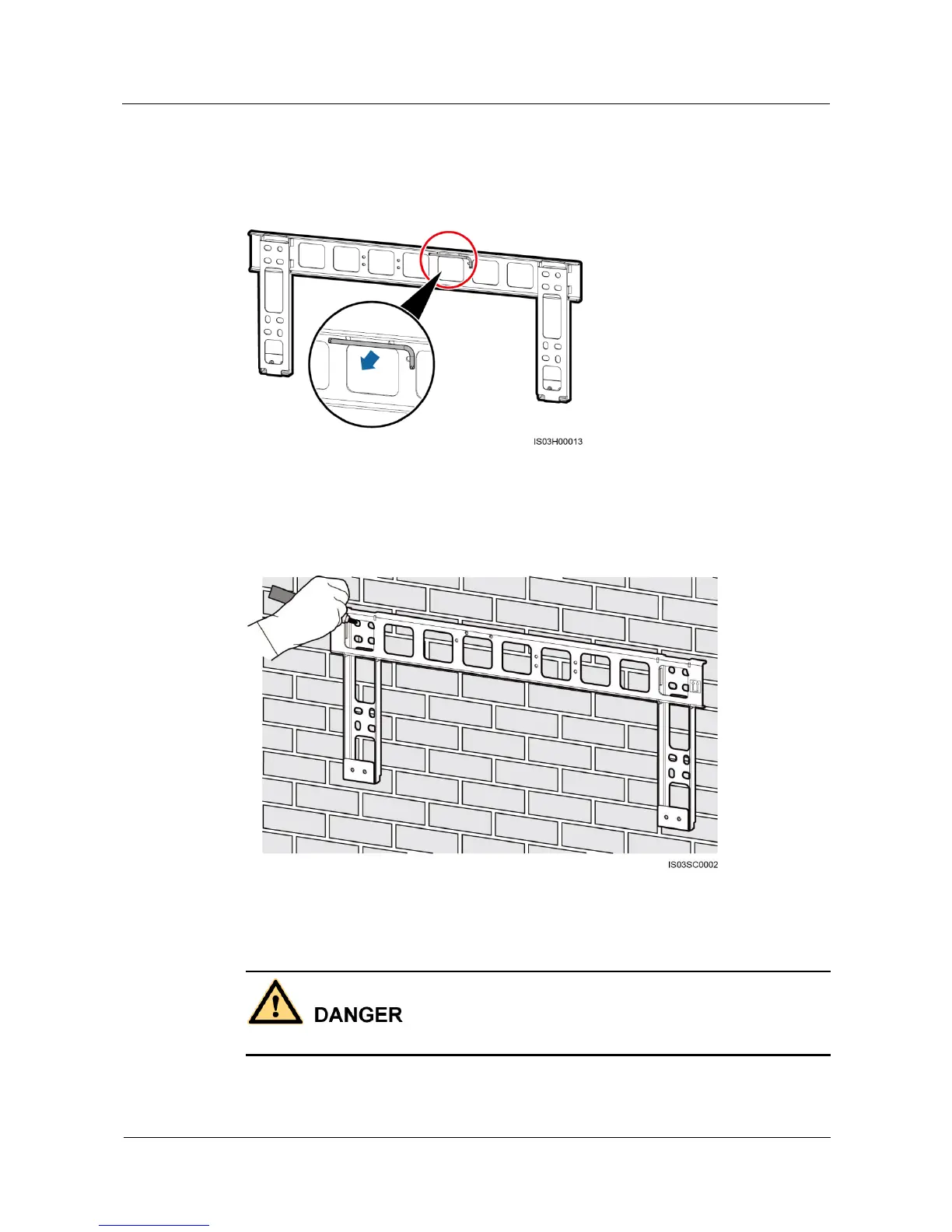

Step 1 Remove the security torx wrench from the mounting bracket and set it aside.
Figure 4-10 Removing a security torx wrench
Step 2 Determine the positions for drilling holes using the mounting bracket available in the packing
case. Level the hole positions using a level, and mark the hole positions using a marker.
Figure 4-11 Determining hole positions
Step 3 Drill holes using a hammer drill and install expansion bolts.
Avoid drilling holes in the water pipes and power cables buried in the wall.
An expansion bolt contains four parts, as shown in Figure 4-12.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
