5 Connecting Cables
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
45

If a copper-clad aluminum cable is used, use a copper wiring terminal.

If an aluminum alloy cable is used, use a copper to aluminum adapter terminal or an
aluminum wiring terminal with a copper to aluminum adapter washer.

Directly connecting an aluminum wiring terminal to the AC terminal block will cause
electro-chemical corrosion and weaken the cable connection reliability.

The copper to aluminum adapter terminal or an aluminum wiring terminal with a copper to
aluminum adapter washer must comply with IEC61238-1.

Do not mix up the aluminum and copper sides of the copper to aluminum adapter washer.
Ensure that the aluminum side of the washer contacts the aluminum wiring terminal, and
the copper side contacts the AC terminal block.

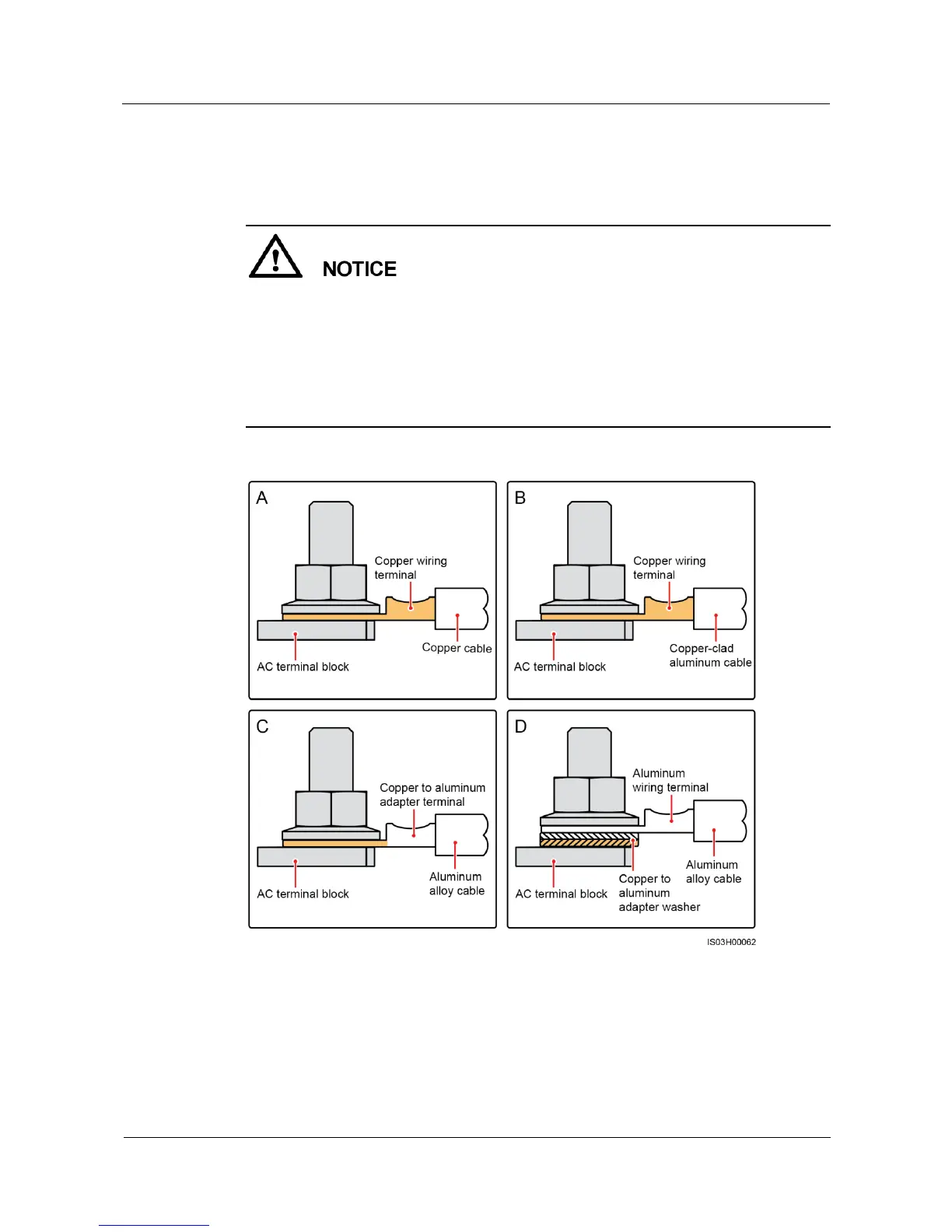

Figure 5-6 Requirements for OT terminals
Procedure
Step 1 Remove the AC terminal cover, as shown in Figure 5-7.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
