5 Connecting Cables
Issue 07 (2018-05-04)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
47

Mismatch between the cable outer diameter and the rubber fitting may degrade the Ingress
Protection Rating of the device.

To avoid damaging the rubber fitting, do not route a cable with a crimped OT terminal
directly through the rubber fitting.

Do not adjust the cable when the locking cap is tightened. Otherwise, the rubber fitting
will shift, which affects the Ingress Protection Rating of the device.

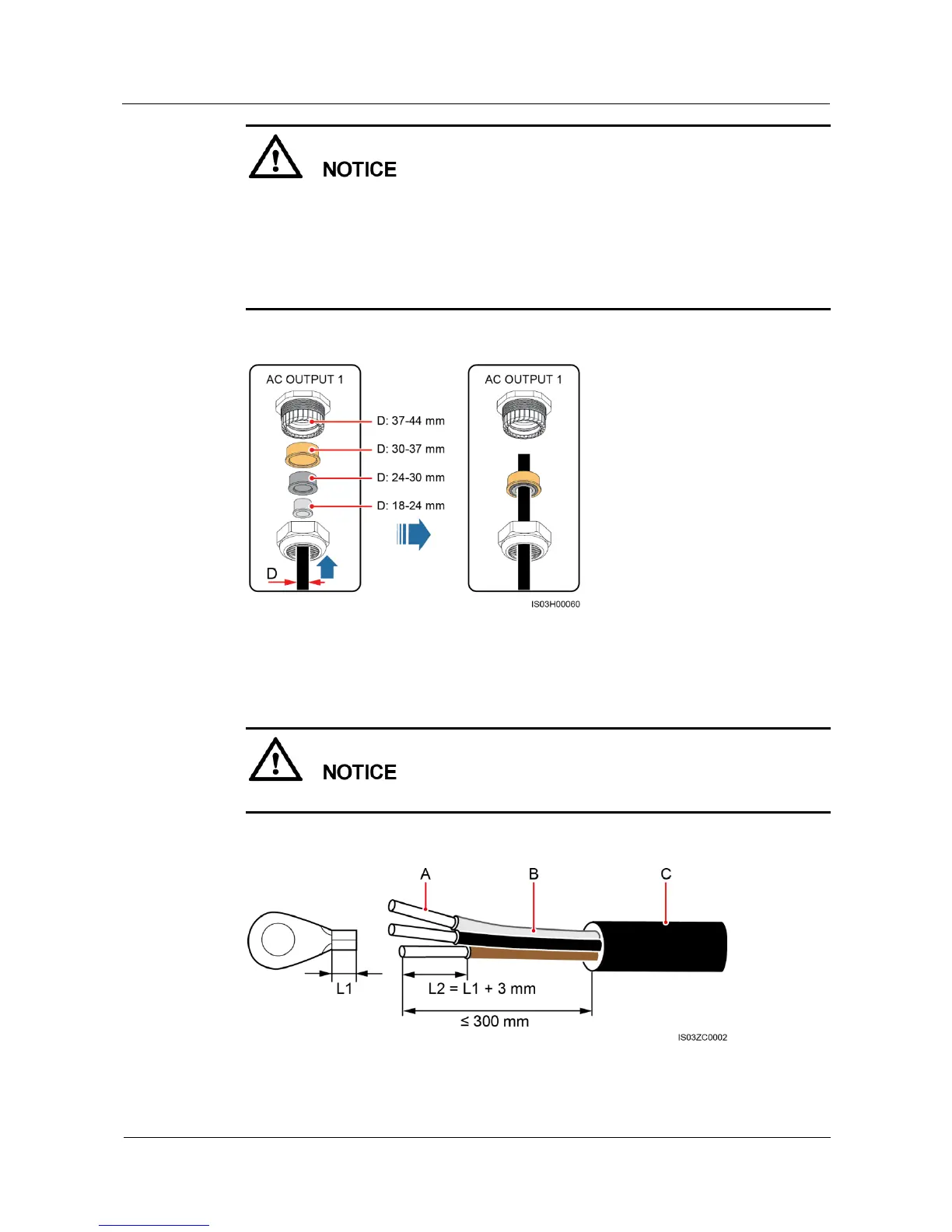

Figure 5-8 Selecting the rubber fitting
Step 4 Remove an appropriate length of the jacket and insulation layer from the AC output power
cable using a wire stripper.
Ensure that the jacket is in the maintenance compartment.
Figure 5-9 Three-core cable (excluding the ground cable and neutral wire)
(A) Core wire
(B) Insulation layer
(C) Jacket
