Step 8 Connect the AC output power cable to the AC terminal block, and then tighten the nut using a
13 mm socket wrench with an extension rod to a torque of 8 N·m. If you connect a ground
cable to the ground point in the maintenance compartment, tighten the ground screw using a
10 mm socket wrench with an extension rod to a torque of 5 N·m.

Ensure that AC terminations are secured. Failure to do so may cause the SUN2000 to
malfunction or cause damage to its terminal block from issues such as overheating.

If the SUN2000 is insecurely installed and the AC output power cable bears the pulling
force, ensure that the last cable bearing the force is the PE cable.

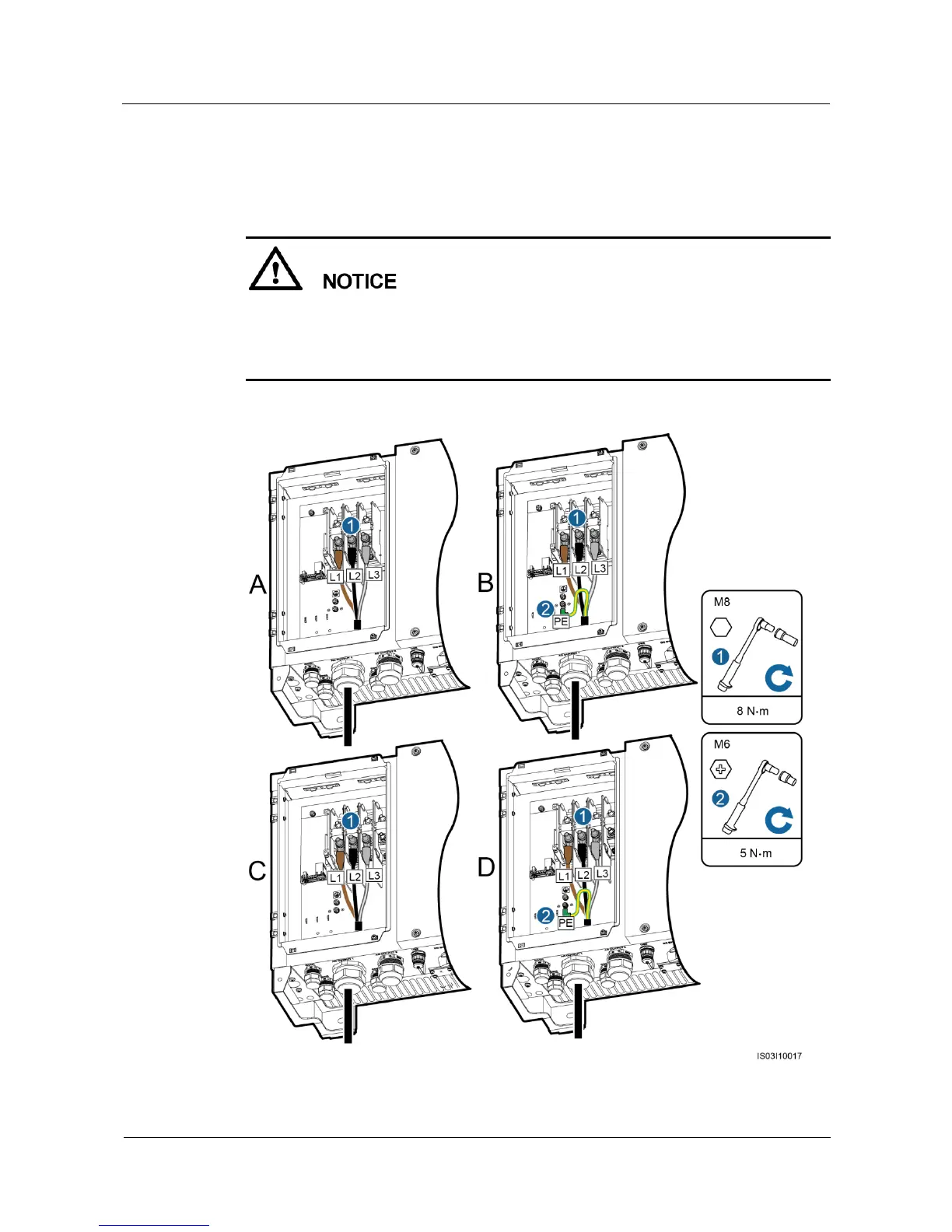

Figure 5-13 SUN2000-42KTL
(A) 3-pin, excluding the ground cable
(B) 3-pin, including the ground cable

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
