Step 2 Adjust the support bar.

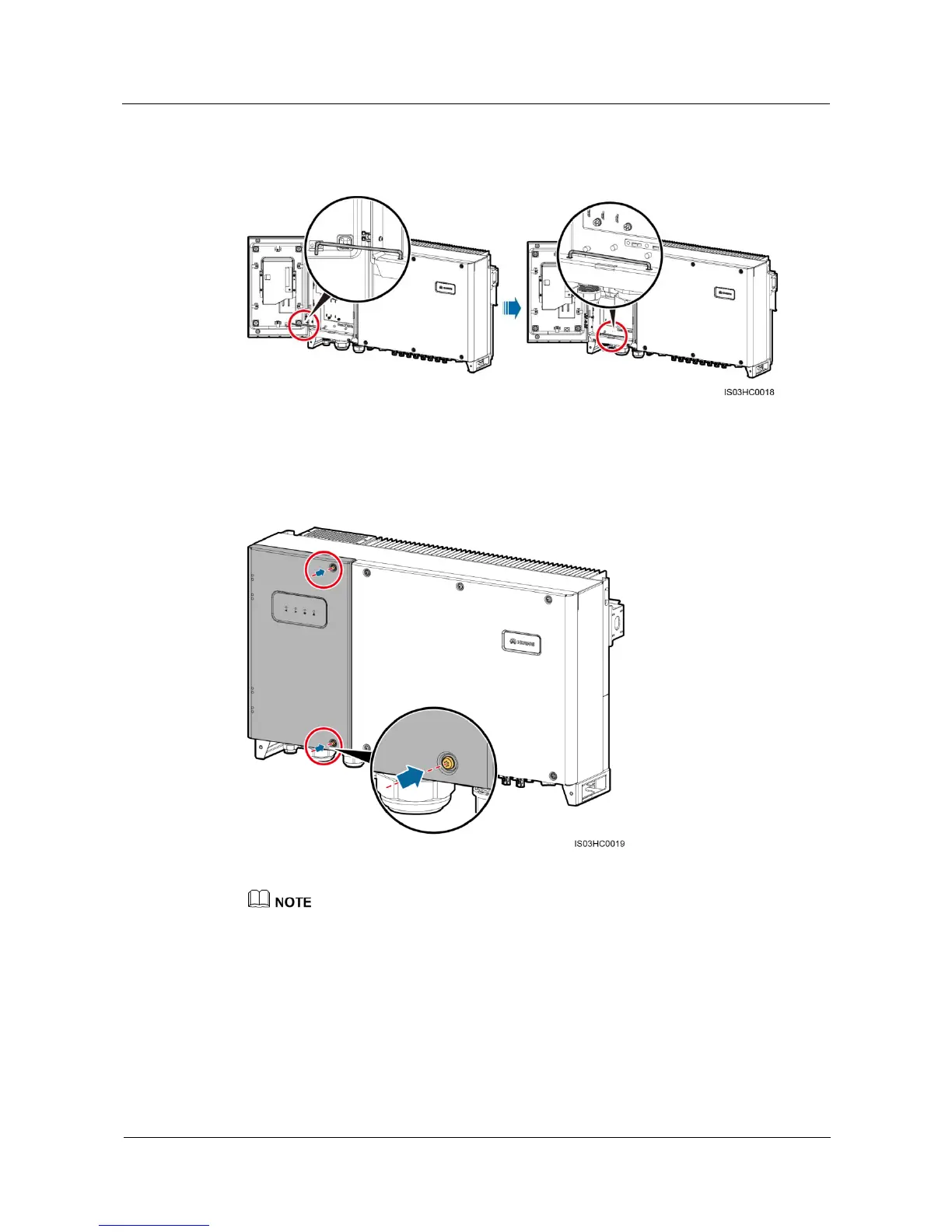

Figure 5-42 Adjusting a support bar
Step 3 Close the maintenance compartment door. Tighten the two screws on the maintenance
compartment door using a security torx wrench to a torque of 5 N·m.
Figure 5-43 Tightening screws on the maintenance compartment door

If a screw on the maintenance compartment door is missing, use the unused ground screw on the
chassis shell as a standby screw.

If the floating nut used for securing the maintenance compartment door is missing, use the standby
floating nut shown in Figure 5-44.

Huawei SUN2000-36KTL Specifications

General

Purpose	Solar panel
Efficiency	98.8 %
Output power	36000 W
Weatherproof	Yes
Certification	EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
Input voltage	250 - 1100 V
Output voltage	220/380, 230/400, 277/480 V
Input frequency	- Hz
Power supply type	Outdoor
Power current type	DC-to-AC
Adjustable output voltage	-
Power protection features	Over current
International Protection (IP) code	IP65
Product color	White
Quantity per pack	1 pc(s)
Operating temperature (T-T)	-25 - 60 °C
Operating relative humidity (H-H)	0 - 100 %

Weight and Dimensions

Depth	283 mm
Width	930 mm
Height	550 mm
Weight	62000 g
