Huawei SUN2000-4KTL-L1 User Manual

No. Meaning Value
2 Power level ● 2K: The power level is 2 kW.
● 3K: The power level is 3 kW.
● 3.68K: The power level is 3.68 kW.
● 4K: The power level is 4 kW.
● 4.6K: The power level is 4.6 kW.
● 5K: The power level is 5 kW.
● 6K: The power level is 6 kW.
3 Topology TL: transformerless
4 Design code L1: residential
Networking Application
The SUN2000 applies to residential rooftop grid-tied systems. The system consists
of PV strings, grid-tied solar inverters, AC switches, and power distribution units
(PDUs).

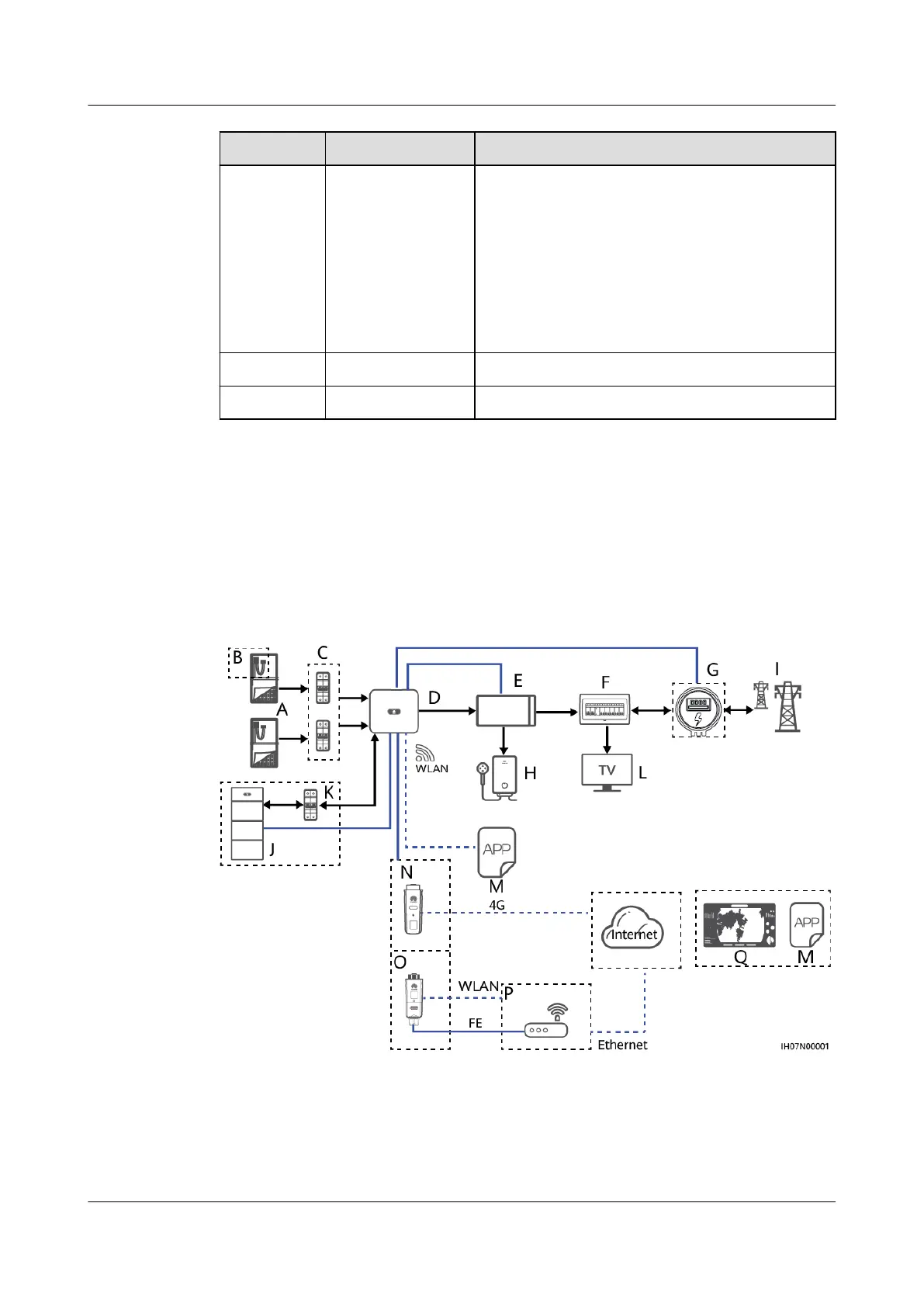

Figure 2-2 Single SUN2000 scenario (dashed boxes indicate optional
conguration)
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 14

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
