Huawei SUN2000-4KTL-L1 User Manual

(1) LED indicators (2) Front panel
(3) Hanging kit (4) Mounting bracket
(5) Heat sink (6) Ventilation valve
(7) DC switch locking screw hole
a
(8) DC switch
b
(DC SWITCH)
(9) DC input terminals (PV1+/PV1–) (10) DC input terminals (PV2+/PV2–)
(11) Battery terminals (BAT+/BAT–) (12) Smart Dongle port (4G/FE)
(13) Antenna port (ANT) (14) Communications port (COM)
(15) AC output port (AC) (16) Ground point
NO TE
● Note a: The DC switch locking screw is used to lock the DC switch to prevent accidental
startup. It is delivered with the SUN2000.
● Note b: DC input terminals PV1 and PV2 are controlled by the DC switch.

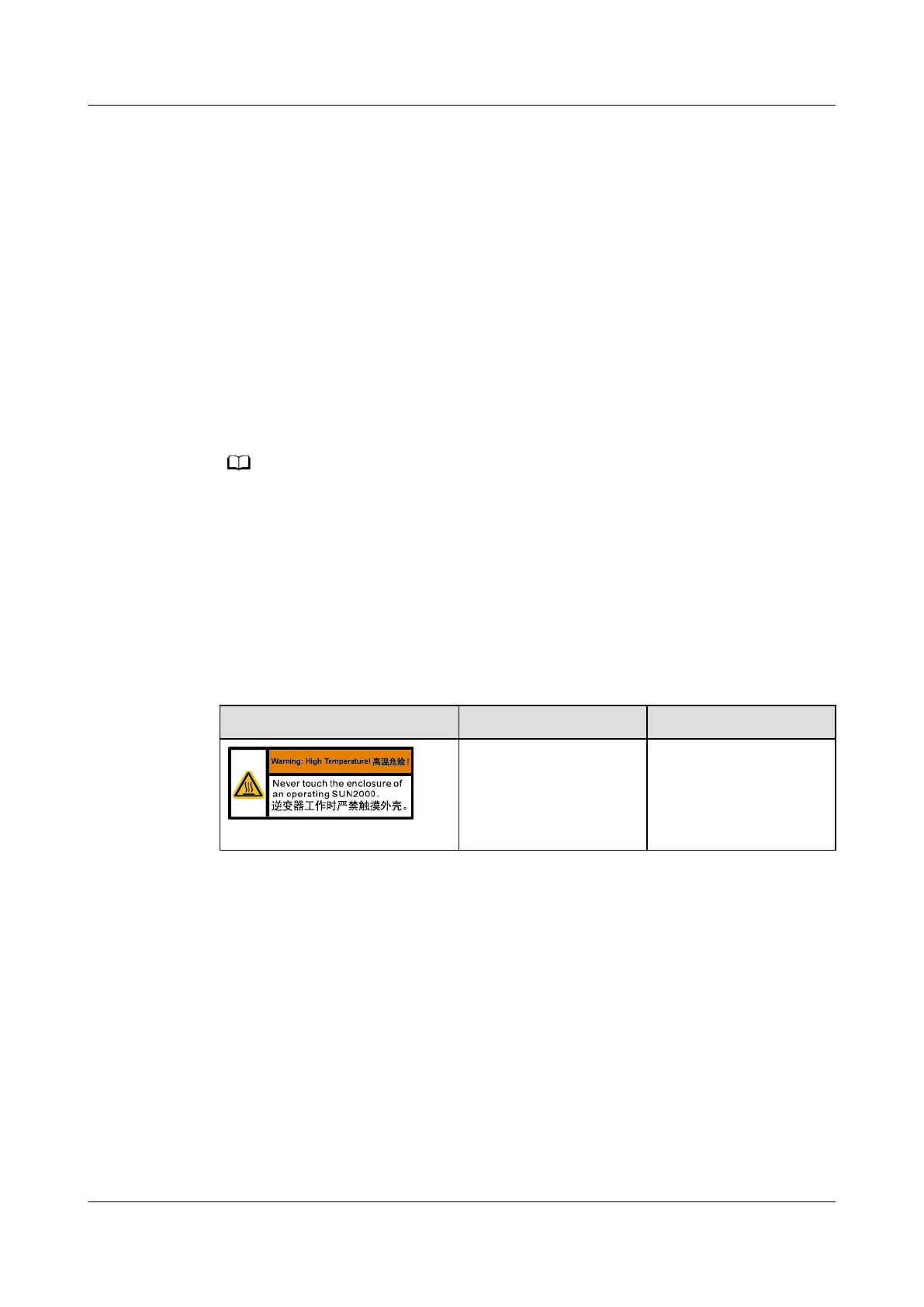

2.3 Label Description
Enclosure Labels
Table 2-2 Enclosure label description
Icon
Name Meaning
Burn warning Do not touch a
running SUN2000
because the enclosure
is hot when the
SUN2000 is running.
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 18

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
