Huawei SUN2000-4KTL-L1 User Manual

2.4 Working Principles
Schematic Diagram
The SUN2000 receives inputs from up to two PV strings. Then the inputs are
grouped into two MPPT routes inside the SUN2000 to track the maximum power
point of the PV strings. The DC power is then converted into single-phase AC
power through an inverter circuit. Surge protection is supported on both the DC
and AC sides.
The SUN2000 uses a reserved battery port for energy storage expansion. Battery
performs charging and discharging operations according to the battery working
mode.

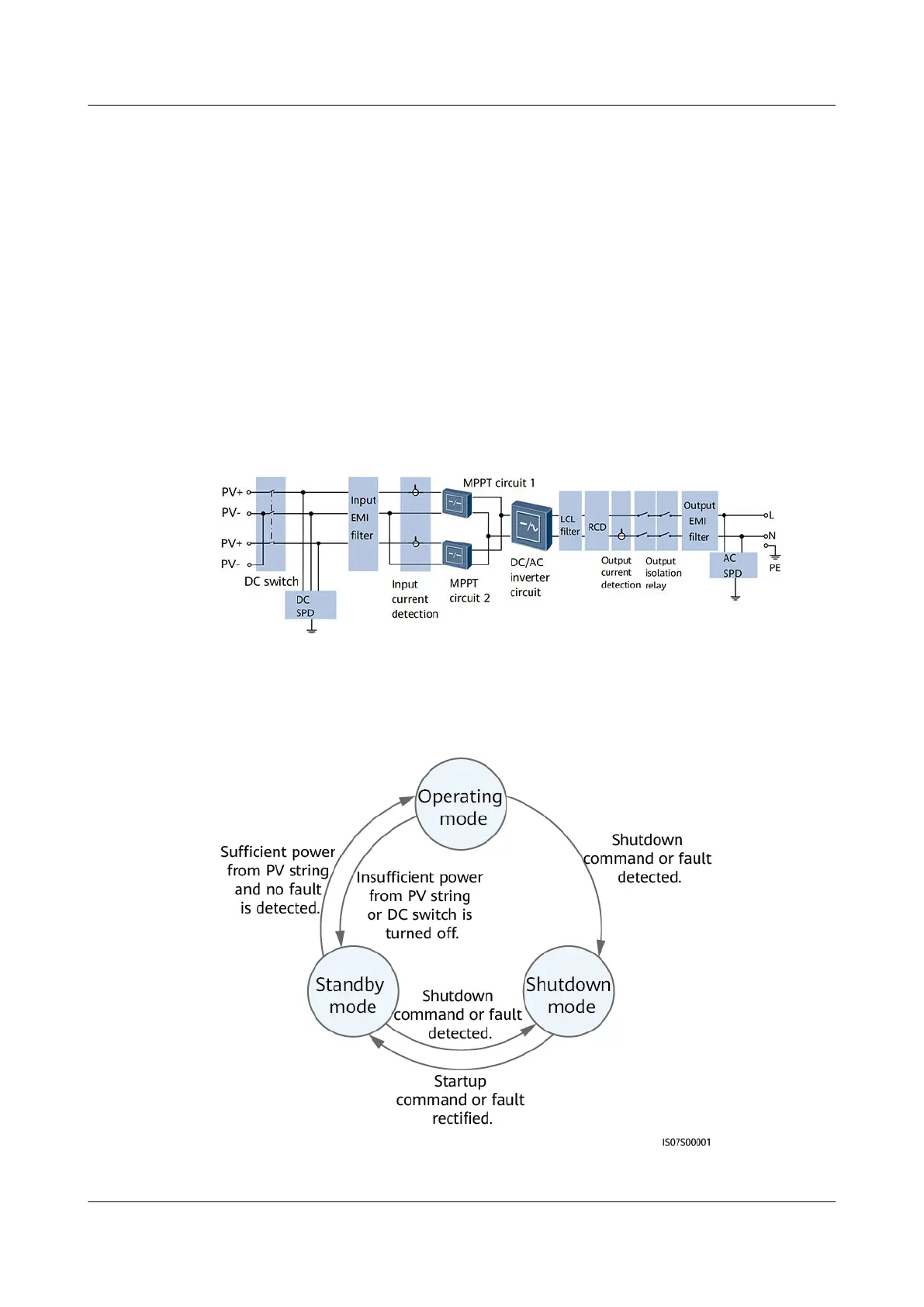

Figure 2-7 Schematic diagram
Working Mode
Figure 2-8 Working modes
SUN2000-(2KTL-6KTL)-L1
User Manual 2 Product Introduction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 21

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
