Huawei SUN2000-4KTL-L1 User Manual

(1) Bolt (2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
NO TICE
● To prevent dust inhalation or contact with eyes, wear safety goggles and an
dust mask when drilling holes.
● Wipe away any dust in or around the holes and measure the hole distances. If
the holes are inaccurately positioned, drill holes again.
● Level the head of the expansion sleeve with the concrete wall after removing
the nut, spring washer, and
at washer. Otherwise, the mounting bracket will
not be securely installed on the wall.
● Loosen the nut, spring washer, and
at washer of the expansion bolt at the
bottom.

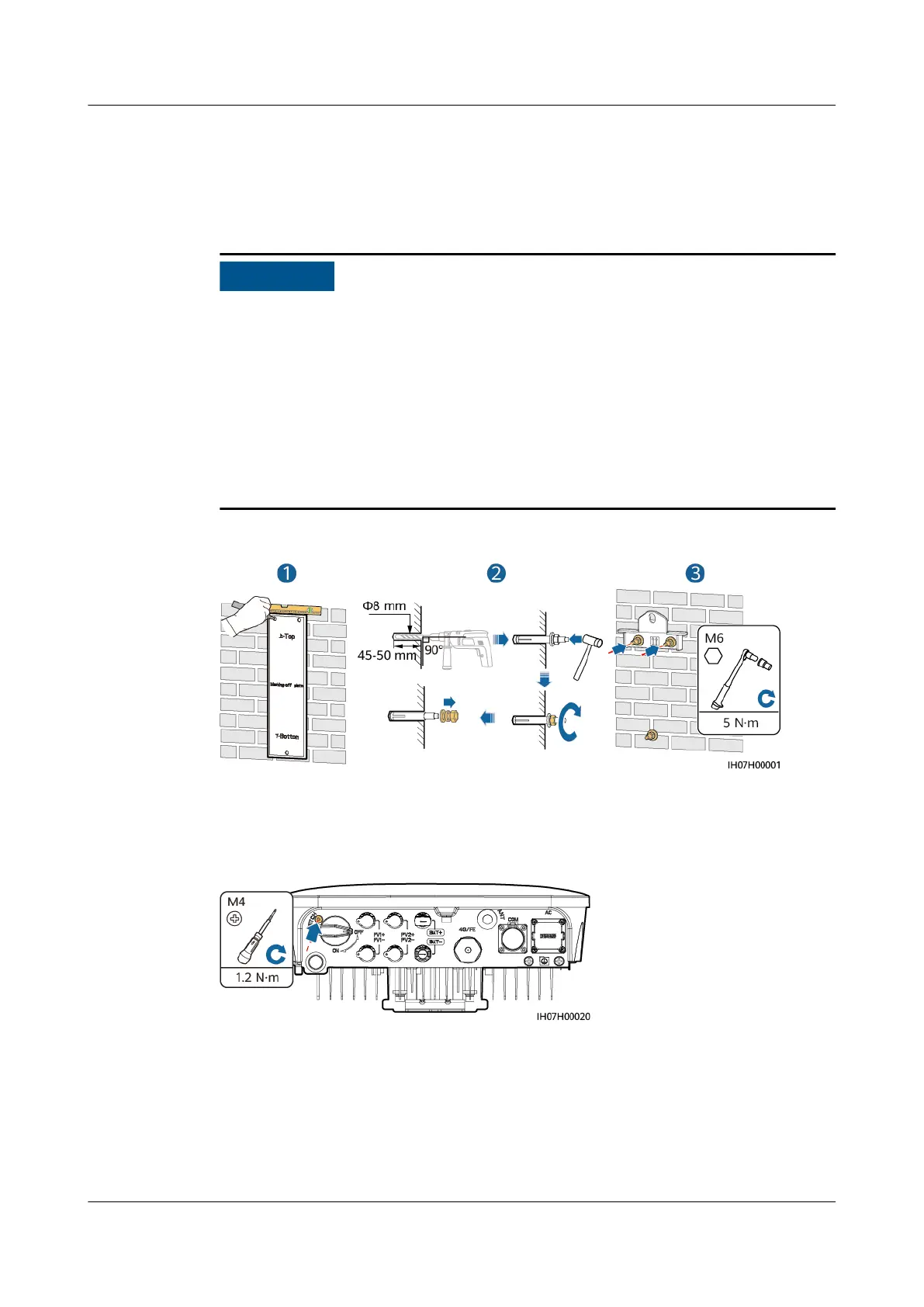

Figure 4-9 Installing expansion bolts
Step 3 (Optional) Install the locking screw for the DC switch.
Figure 4-10 Installing a locking screw for the DC switch
Step 4 Install the SUN2000 on the mounting bracket.
Step 5 Tighten the nuts.
SUN2000-(2KTL-6KTL)-L1
User Manual 4 System Installation
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 32

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
