Huawei SUN2000-4KTL-L1 User Manual

Scenario 1: Setting on the FusionSolar Server Side (Solar Inverter Connected
to the Management System)
Step 1 Log in to the FusionSolar App and tap the plant name on the Home screen to
access the plant screen. Select Layout, tap , and upload the physical layout
template photo as prompted.

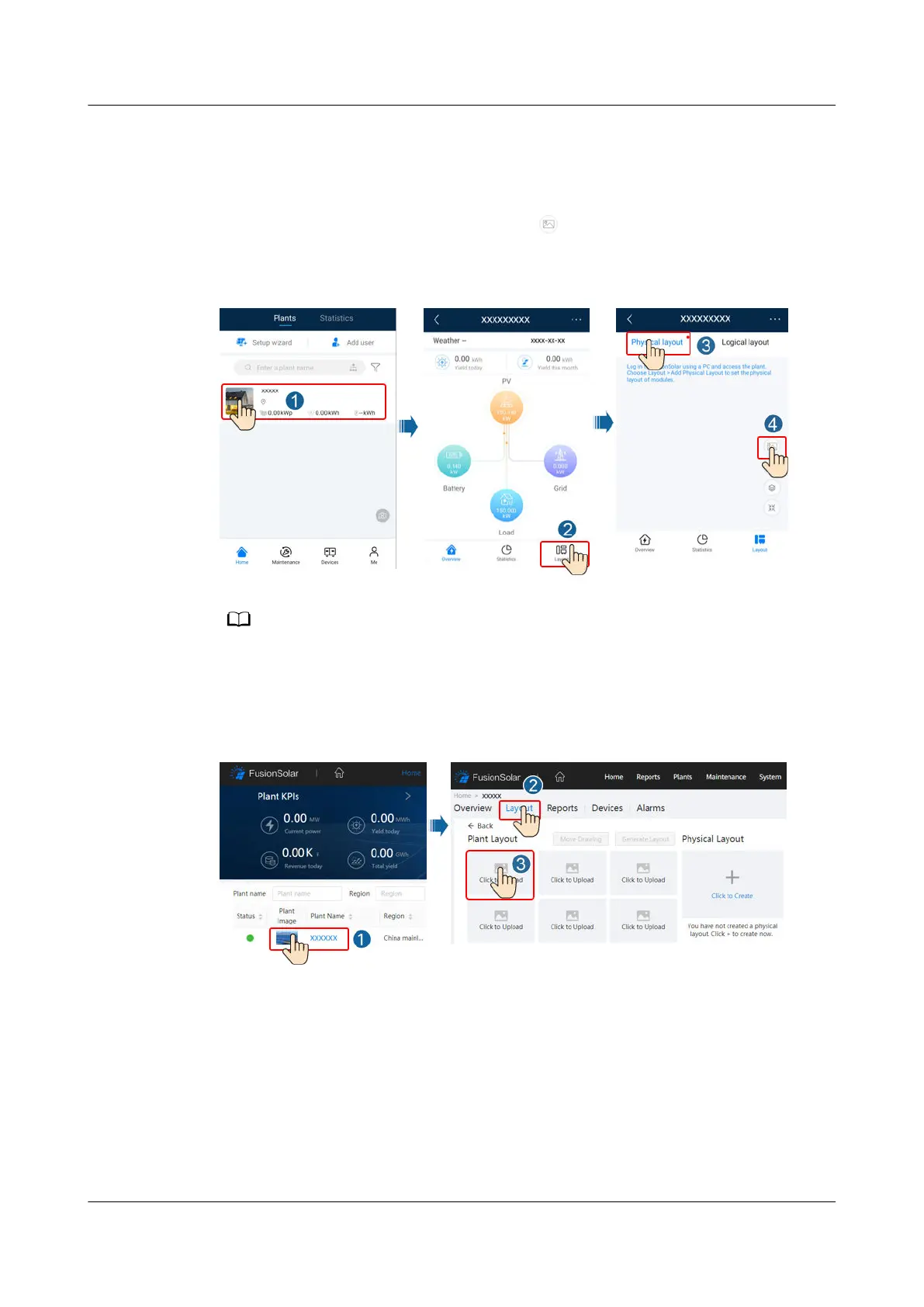

Figure 7-6 Uploading the physical layout template photo (App)
NO TE
You can also upload the physical layout template photo on the WebUI as follows: Log in to
https://intl.fusionsolar.huawei.com to access the WebUI of the FusionSolar Smart PV
Management System. On the Home page, click the plant name to go to the plant page.
Choose Layout, click Click to Upload, and upload the physical layout template photo.
Figure 7-7 Uploading the physical layout template photo (WebUI)
Step 2 Log in to https://intl.fusionsolar.huawei.com to access the WebUI of the
FusionSolar Smart PV Management System. On the Home page, click the plant
name to go to the plant page. Select Layout. Choose Generate layout, and create
a physical layout as prompted. You can also manually create a physical location
layout.
SUN2000-(2KTL-6KTL)-L1
User Manual 7 Man-Machine Interaction
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 72

Huawei SUN2000-4KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Rated output power	4000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Max. apparent AC power	4000 VA
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	200-1000 V
Number of MPP trackers	2
Max. short-circuit current per MPPT	15 A
Operating temperature range	-25°C to +60°C
Protection degree	IP65
Max. Input Power	6000 W
Max. Output Power	4000 W
Rated Output Voltage	220 V / 230 V / 240 V
Output Frequency	50 Hz / 60 Hz
Cooling Method	Natural convection
AC voltage range	180 V to 280 V
